LP-Industry - Rectangular Aluminum Magnetic Wire

• Thermal class: 180(Class H), 200(Class C), 220(Class C+), 240(Class HC);
• Standard: IEC, NEMA, JIS, GB;
• Spool materials: plastic, wooden;
• Dimension: thickness:0.8-8.0mm;width:2-22mm

Product types of flat aluminium transformer winding wire:

1. Polyester enameled aluminum wire, class 130
2. Modified polyester aluminium magnet wire, class 155
3. Polyesterimide enameled aluminum wire, class 180
4. Polyester (imide) coated with polyamide-imide enameled aluminum wire, class 200
5. Polyimide enameled aluminum wire, class 220

• Compared with the copper enameled wire, enamelled aluminum magnet wire is easier to winding, also there is a solid oxide film on the surface of enameled aluminum wire, which make it has a good insulating effect, a long life.
• Due to the good insulating effect of aluminum film layer, its heat-resistant temperature can be 20 degrees higher than the copper wire
• The greatest benefit of using aluminum is that it is 1 / 3 lighter than copper which significantly lower the production costs, second it can attach to the solids easily, and third it can also reduce the freight and transportation during the operation.

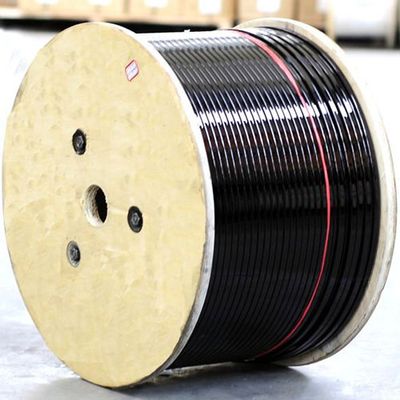

• Name Enameled Rectangular Aluminum Wire
• Conductor Aluminum
• Dimension Thickness(a):0.8-8.0mm; Width(b):2.0-22mm
• Thermal Class 120(Class E), 180(Class H), 200(Class C), 220(Class C+), 240(Class HC)
• Insulation Thickness: G1,G2 or single build,  heavy build
• Standard IEC 60317-16,60317-16/28,MW36 60317-29 BS6811, MW18 60317-18 ,MW20 60317-47
• Certificate UL
• Packing 30kg-150kg ply-wood spool(250*400 / 250*500/ 250*600/ 250*730)
