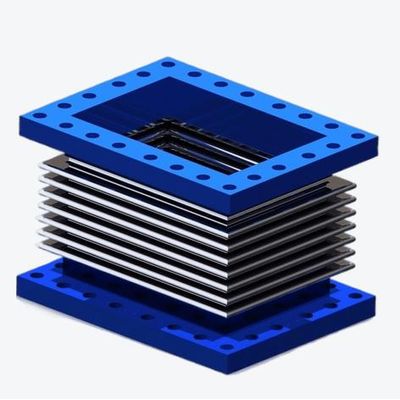

Ocelflex - Rectangular Expansion Joint
Rectangular Expansion Joints, like circular expansion joints can absorb all three movements - axial, lateral and angular. As these are installed in pipe systems with rectangular ducts having no particular design standard, Rectangular Expansion Joints are customised for specific applications to provide the most economic design. Rectangular expansion Joints are manufactured without any size limit.
Can be customised
to any size
Upto 2000 mm or customised.
- 270 ? to 700 ?.
Full Vacuum to 5 bar.
Stainless Steel 300 Series
Inconel, Incoloy, Hastelloy
ASME B31.3
EJMA X
Customised
Spring Forces : Low
Movement : High
Spring Forces : Low
Movement : Medium
Spring Forces : Low
Movement : High
- Limit Rods
- Inner Sleeve
- Outer Cover
- Particulate Barrier
Where large lateral movements are needed, a universal rectangular expansion joint can be designed, similar to universal circular expansion joints. The centre piece of the Universal Rectangular Expansion joint should not be anchored when installed in the piping systems.
