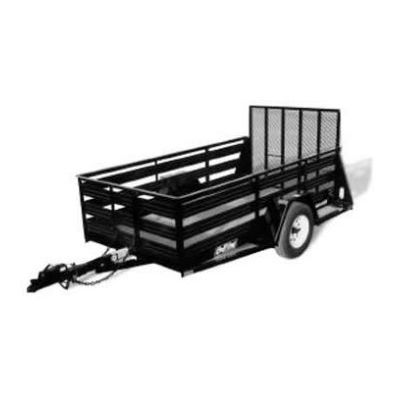

RediHaul - Model RH8UT -Utility Trailers

SHARE

Main Frame: 4 x 3 x 1/4 Angle, high strength structural steel. Bed Crossmembers: 3 x 2 x 1/4 Angle, high strength structural steel. Tongue: A-frame 3` x 3.5# channel, high strength structural steel & 3 x 3 x 3/16 Rec tube, high strength structural steel.

Most popular related searches
tandem axle utility trailer
back safety
safety system
protective equipment standard
protective equipment
sealing system
  • Axles: 1 - 3,500# Dexter Torflex; 5 bolt hubs, E-Z Lube Hubs; inner bearing, 1.378 I.D.; outer bearing, 1.063 I.D.
  • Brakes:
    • 10" x 2 1/4" Electric Brakes on all wheels, E-Z Lube Hubs
    • 10" x 2 1/4" Hydraulic/Surge brakes on all wheels (Optional)
    • Idler Hubs NO Brakes (Optional will reduce G.V.W.R.)
  • Suspension: Dexter Torflex rubber mount; independent wheel suspension
  • Tires: 2 - ST215/75R X 14 "C" 1,870# each @ 50 PSI
  • Wheels: 2 - 5.5 x 14 single wheel 3.19 pilot 5 on 4 1/2" bolt circle 1,865# each
  • Decking: 2" Nominal Pine Deck Treated
  • Deck Dimensions: 8` Long x 5` 1" Wide (61" Between Fenders)
  • Deck Height: 18"
  • Coupler:
    • 2" Ball coupler Electric or Idler
    • 2" Ball coupler with Dico Model 60 Actuator
  • Wiring: Sealed modular wiring with, 7 Pole Flat Prone Plug. Safety breakaway system with tow charger (battery optional). Flat 4 wiring harness on Hydraulic or Idler
  • Lights: All D.O.T. required; sealed and shock mounted LED lights
  • Extras: 1/4" x 36" Grade 43 Safety Chain with slip hook & safety latches. Tongue stand, Slatted steel sides 30" tall
  • Ramp: Combination tailgate ramp 48" High x 57" Wide
  • G.V.W.R.: 3,920#
  • Capacity: 2,740#
  • G.V.W.R.: 2,990# with Idler
  • 61" Between Fenders
  • 2" Ball Coupler
  • 2" Nominal Pine Deck
  • Combination Tailgate/Ramp 48" x 57" Wide
  • 30" Steel Slatted Sides
  • Hydraulic Surge Brakes on all Wheels (Free Backing)
  • Safety Chains with Snap Hooks
  • Sealed Modular Wiring System
  • Safety Breakaway Ststem (Battery Standard with Electric Brakes)
  • Sealed and Shock Mounted LED Lights
  • Spare Tire and Wheel
  • Spare Tire Mounting Bracket
  • Solid Steel Sides
  • Electric Brakes
  • 6` Wide
  • Paint Color and Undercoat
  • Gravel Guard Protection
