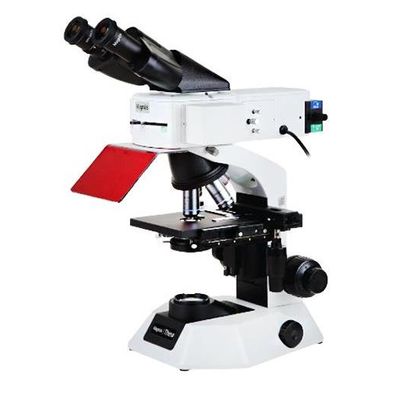

Magnus - Reflected LED Fluoroscence Microscope
Designed in Japan having high-resolution optics for the strong light beam. EpiLed attachment for fluorescence applications incorporates bright LED light illumination having Blue / Green / Royal Blue options. Priced economically for wide applications in the diagnosis of Tuberculosis TB and Autoimmune diagnostics. Compatible with Magnus microscopes model MX21i and MLXiplus.
LED Source
Microscope with built-in LED fluorescence source with low power consumption of 3W
No lamp replacement required (lamp life > 20000hrs) with choice of three filters: Blue, Royal Blue, Green
Minimal Photo bleaching
Minimal photo bleaching due to variable light control which allows adjustment of illumination intensity
Two Applications in One
Users can easily switch between brighfield and Fluoroscence applications without removing fluoscence module
LifeTime
- 30,000 hrs
LED power
- 3W
- Royal Blue : 450 nm
- Blue : 480nm
- Green : 535 nm
Emission Filters
- 1 or 2 position front sliding filter carrier depending on the excitation spectra, with iris diaphragm for high contrast and sharpness.
Electrical Parameters
- AC Adaptor input : 100~240V AC , Output Voltage : 9V, 2A DC
Application:
- Detection of mycobacterium tuberculosis TB ( Royal Blue)
- Detection of MALARIA after staining with acridine orange
- Alexa 488, FITC ( Blue Excitation), Rhodamine, TRITC ( Green Excitation)
- Autoimmune Diseases.
Compatible Microscopes:
- Magnus Theia-i/MLXi - Plus
- Magnus MX21i
- Olympus CX23, CX33
