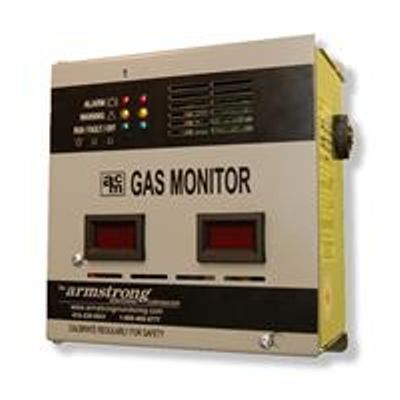

AMC - Model 1AREF Series -Refrigerant Monitor
The AMC-1AREF Series Gas Monitor provides a specialized package for refrigerant monitoring applications. Incorporating micro-controller based design, it provides precision, durability, and ease of use within a compact package. The versatile AMC-1AREF Series monitor can be configured to work with all of AMC’s refrigerant sensor/transmitters. The AMC-1AREF monitor is designed to work with the AMC-RAM-4 series of remote alarm modules to provide the functionality required for CSA B52 and ASHRAE 15 compliant monitoring systems.
Most popular related searches
refrigerant monitoring
gas monitoring
refrigerant transmitter
gas monitoring system
gas alarm
monitoring relay
remote sensor
- Enclosure: ASA 61 gray enameled 16 gauge steel
- Input: Up to 2 x 4-20 mA Sensor/Transmitters
- Supply Voltage:120 VAC, 60 Hz
- Dimensions: 20.32cm H x 20.32cm W x 12.70cm D (8" x 8" x 5")
- Weight: 4.54 kg (10 lb)
- Operating Temperature: -20°C to 40°C (-4°F to 104°F) With display(s): 0°C to 40°C (32°F to 104°F)
- Monitor Warranty: Two years
- Relay Contacts: 2 x DPDT 10A <S> 250 VAC Res.
- Alarm Thresholds: 2 Per Channel
- Indicators (per Gas): Red LED-Alarm
- Yellow LED-Warning
- Green LED
- LED On-Run
- LED Flashing-Fault
- LED Off-Off
- Recommended Mounting Height: 4-5 ft. A.F.F.
- Concentration Display(s) - Optional
- Low voltage peripherals mean sensors and remote alarms can be run in same conduit
- Optional Integral Strobe
- Alarms disabled during warm up
- System test switch
- Activation delays, five minutes for Warning and/or Alarm set points
- Minimum Run Timer
- 95 dBa Audio alarm with Warning set point
- Hinged door
- Optional enclosure key lock
