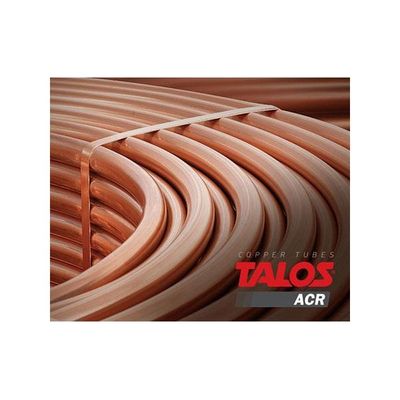

TALOS - Model ACR -Refrigeration and Air Conditioning
Specifications: EN 12735 parts 1 & 2, ASTM B280/B68/B743, JIS H3300. All TALOSⓇ ACR copper tubes produced according to EN 12735 parts 1 & 2 are certified according to the requirements of the Pressure Equipment Directive (PED) 2014/68/EU, as well as, the German regulation AD2000/W6 for pressure vessels.
Material
Copper phosphorus deoxidised (Cu-DHP), having minimum copper content 99,90% and P = 0,015% - 0,040%.
Straight lengths, in bundles (hard copper tubes) and in wooden boxes (soft copper tubes) Pancakes-PNC in shrink-wrapped individual plastic bags. Depending on market requirements, products can be placed in cardboard boxes and pallets. Customised dimensions are manufactured upon request.
Spools (LWC)
TALOSⓇ ACR copper tubes are available in spools (LWC) with or without central support (hard carton). Spool sides may be delivered protected by “flanges” of reinforced cardboard.
“CD” coils: Spools with a “central” decoiling
Spools with a “central” decoiling are especially prepared so that unwinding from the center of the coil is possible. They provide significant advantages to the user, such as reduction in packaging materials, unwinding directly from the pallet and greater weights per spool. “CD” coils of TALOSⓇ ACR copper tubes do not require special unwinding equipment; they have lower handling costs, reducing machine downtime and increasing production efficiency.
