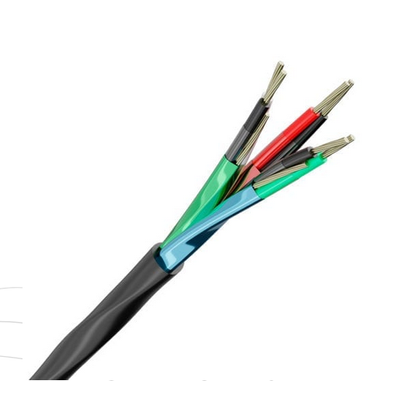

Regency Wire - Model DBS203P-R7195D -Communication Cable

Conductor construction is soft drawn tinned bare copper meeting the requirements of ASTM Specification B-33.

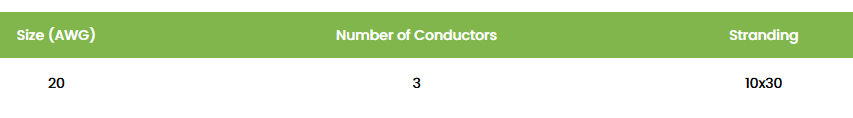

The conductors are 20 AWG stranded with a polypropylene insulation. Each of the insulated pairs are twisted and color-coded to facilitate pair identification with an aluminum polyester tape shielding and a drain wire. The overall jacket is constructed with polyethylene insulation.

The cable assembly is then longitudinally wrapped with an electrically continuous thick polymer-coated smooth aluminum tape overlapped to give 100% coverage.

DBS203P is constructed in accordance with Underwriters Laboratories, Inc.

• Insulation: Polypropylene, nominal insulation thickness .0150”
• Shielding: .00235” aluminum polyester tape ,helically wrapped, over each pair giving 100% shielding
• Drain Wires: 20 AWG tinned copper drain wire, for each pair laid under the shield in contact with aluminum side for each pair
• Jacket: .040” black sunlight resistant polyethylene
• Resistance: 10.9 OHMS PER M at 68 Deg. F
• Capacitance: 25.7 Pico Farads Nom
• Voltage: 350 Volts
• Nominal O.D.: .334”
• Cable WT.: 59.77 Lb. / 1000 Ft.
• Color Coding: Pair 1 - Black, Red Pair 2 - Black, White Pair 3 – Black, Green
• Print Legend: Regency Wire 3 Pair 20 AWG Shielded DBS203P UL
• LBS./M’: 65
• Color Coding: Per ICEA method 1; Pairs – black and white. One conductor in each pair is printed alphanumerically for easy identification
