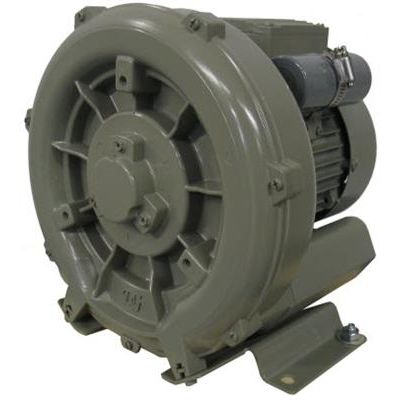

APPL-DG - Model DG200-11TS -Regenrative Blower (Single Stage)

CONSTRUCTION FEATURES

• Fine grain cast aluminum impeller and casings for maximum heat dissipation
• C-UL-US registered for service in Canada and the USA
• IP-55 rated (TEFC) motors
• Mountable in either horizontal or vertical positions
• Inlet and outlet silencers for quiet operation
• 1-1/4” F. NPT connection size
• Horsepower - 0.7
• Material Type - Aluminum
• Power source type - 1/60/115-230V

KEY PRODUCTS FEATURES

• Mountable in either horizontal or vertical positions
• Maximum Continuous Operating Pressure - 52” WC
• Maximum Continuous Vacuum - 44"" WC
• UL Registered (both USA and Canada)
• 1-1/4” F. NPT connection
