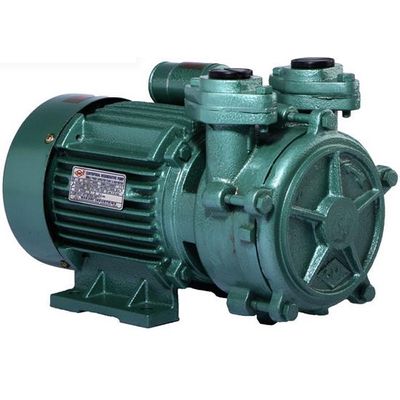

Torren - Model Diamond Series -Regenrative Self Priming Mono Block Pumps
TORREN Regenrative Monoset Pump is a product fitted with Thermal Overload Protector (TOP) to prevent burning with high grade ‘F’ class enameled copper wires that are suitable for wide Voltage fluctuations. These pumps are developed and manufactured by the continuous efforts and innovation of our R&D Team with prime experience in manufacturing pumps for the past 50 years.
Most popular related searches
copper wire
precision ball
communal water
strainer filter
community water
water supply
self-priming pump
precision bearing
industrial water
strainer
- Power Range: 0.5HP – 1HP
- Speed: 1440 RPM / 2880 RPM
- Phase / Voltage Range: Single-phase, 200-240 V, 50 Hz, A.C Supply
- Maximum total head: 36 meters
- Maximum flow rate: 4200 lph
- Suction & Delivery Sizes: 1” x 1” ( 25x25mm)
- Body: Cast Iron / Aluminum
- Winding: ‘F’ Class Insulation Copper Wire
- Shaft: Stainless Steel 410 / EN 8
- Motor Protector: Fitted With TOP
- Bearing: Double Sealed Ball Bearing
- Impeller: Brass Forged Impeller
- Fitted with Thermal Overload Protector (TOP) to prevent burning.
- Noiseless Operations.
- High grade ‘F’ class enameled copper wires
- Suitable for wide Voltage fluctuations
- Minimal power consumption
- Can be easily dismantled and repaired.
- Sturdy and Compact Design.
- Pre Lubricated Double Sealed Precision Ball Bearing.
- Forged Brass impellers.
- Dynamically balanced rotating parts.
- Built-in Suction Strainer to avoid foreign particles.
- Pressure Boosting.
- Home
- Small gardens
- Small Industries
- Community water Supplies
- Part Name: Material
- Pump Casing/Bracket: Cast Iron
- Motor Frame: Aluminum / Cast Iron
- Impeller: Forged Brass
- Shaft: Stainless Steel 410 / EN 8
- Sealing: Mechanical Seal (Carbon & Ceramic)
