Model BioSqueeze 200 -Reliable Removal of Compressive Waste Parts

SHARE

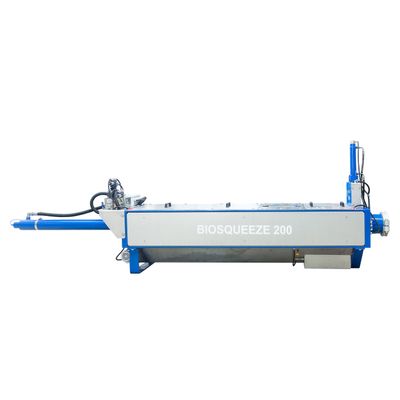

The BioSqueeze 200 is a hydraulically operated separation press that separates waste into a fermentable and a non-fermentable fraction with high efficiency.

Most popular related searches
  • The BioSqueeze can process almost any waste with a sufficiently high content of fermentable substances and thus offers the greatest possible investment security.
  • Due to the large ball passage, even rough contaminants such as stones are no problem for the BioSqueeze.
  • After pressing, the fermentation material can be sanitized without further treatment in accordance with EC Regulation 1069: 2009 (particle size 12 mm).<
  • Exceptionally favorable water balance, since the separation up to a TS content of 25% requires no water addition.
  • Food waste
  • Packaged food
  • Biowaste from the brown bin


Like every other machine from Finsterwalder Umwelttechnik, the BS200 separation press has a touch panel on the control cabinet and a web visualization. Via the Web HMI, the machine can be easily controlled via any Internet-enabled device and settings can be made on it. In addition, monitoring of the process can take place via this interface, which ensures process reliability.


  • Throughput: 5,8 m³/h
  • TS content: up to 25%
  • Screen perforation: Ø 6 or 12 mm
  • Ball passage: Ø 200 mm
  • Pressing pressure: 35 bar
  • Connected load: 15 kW
  • Dimensions: (LxB) approx. 4,000 x 2,000 mm
  • Weight: approx. 1,700 kg
  • Control cabinet and hydraulic unit included
