Jenoptik - Reliable Visual Surface Inspection System for High-Quality Manufacturing Results

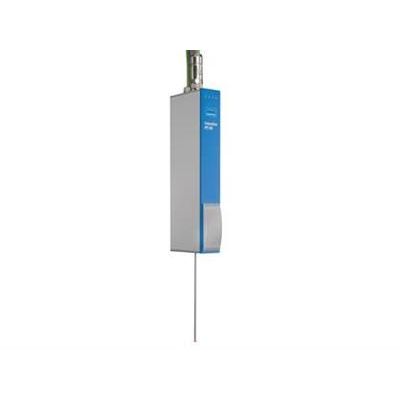

With the Visionline IPS B5 surface inspection system, even the smallest bores can now be inspected (>5mm). The innovative camera and lighting technology, as well as adaptive, dynamic masking and a high resolution allow for the automated full inspection of interior surfaces within the line cycle time. The measuring systemenables fast inspection of the entire inner bore surface, the inspection and measuring of the inner contours and the evaluation of defects. The sensors` 360° lens creates an image of the entire bore surface. This means the fast and robust sensor fulfills all requirements for full product quality inspections in a concatenated installation in a production line.
Visual surface inspection from Jenoptik delivers 100% quality control in the production of workpieces, ensuring consistently high quality. The procedure is not dependent on the operator and is reliable. The high-resolution camera systems precisely check your workpieces and detect the smallest flaws. Thanks to the high inspection rate, the inspection can be integrated into the line, and matches cycle times, saving you costs in production.
The two inspection systems, Visionline IPS B10 and IPS B100, are ideal for internal bore surfaces. They offer an impressive full 360° inspection. In these automated processes, a CMOS sensor seamlessly scans the inside of the bore hole, delivering high-resolution, high-contrast images. This means you can detect surface flaws such as blowholes, porosities, and scratches even during production. The Optisens software offers your employees a simple and intuitive way of evaluating images.
We offer a variety of models so that the system best meets your requirements. The machine can be either manually loaded,or is available as a fully automated version. The robot-assisted version offers maximum flexibility. Our multisensor systems can even handle complex inspection tasks effortlessly– such as the inspection of all external and internal surfaces of engine blocks.
- High resolution: Even the smallest flaws are detected.
- Not operator-dependent: Automatically inspect internal bore surfaces with a full 360° view.
- High quality: Maintaining the highest quality requirements.
- Reliable: Quality is continuously checked and remains consistent.
- Modular: Standalone systems or line-integrated inspection machines.
- User-friendly: The inspection systems are easy to operate. The Optisens software helps in the evaluation process.
- Automotive industry, mechanical engineering, medical technology: Visual inspection of functional component surfaces.
- Test diameter 5 – 14 mm
- Inspection depth 200 mm
- Image sensor CMOS technology
- Objectilluminationintegrated, LED
- Front collisionprotectionintegrated
- Typical line cycle time 15 s (control plate)
- Flaw detection limit 100 μm
- Surfaces matt to high-gloss finishes and textured surfaces
