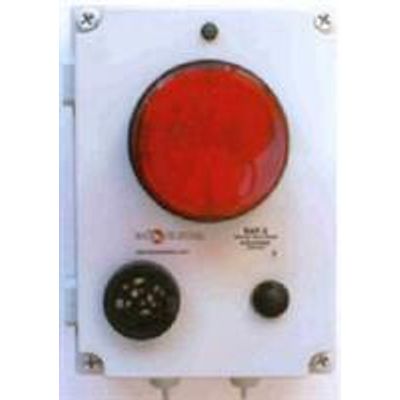

Lenntech - Model RAP-2 -Remote Alarm Panel
The RAP-2 Remote Alarm Panel is for alarming when signals from ozone and VOC monitors reach preset limits or set-points. The alarms are a red strobe light and a loud audible alarm. The RAP-2 also outputs its input signal in 4-20 mA form for building automation systems and other applications requiring long signal paths. The RAP-2 is powered by 14-30 VAC or DC. This remote alarm panel is usually used with the Eco Sensors C-21, C-30ZX, EE-2, and OS-4. It can be used with some other instruments by special order.
Most popular related searches
food process plant
VOC monitor
swimming pool
polycarbonate enclosure
VOC monitoring
ozonation
swimming pool ozone
laundry ozone
pool ozone
ozone monitoring
- Swimming pools.
- Laundries using ozone.
- Large noisy factory environments.
- Casinos and other ozonated public areas.
- Agricultural storage areas.
- Farms.
- Food processing plants.
- Rugged polycarbonate enclosure with hinged door.
- Accepts input of 0-2 VDC, 4-20 mA and relay closure.
- Loud pulsating audio alarm with silencing button.
- Very bright red strobe light.
- 4-20 mA signal and relay outputs.
- Alarm set-point adjustment.
- Uses easily available 14-30 VAC or DC power.
- Signals from instruments can be transmitted by inexpensive twisted pair.
- 125 × 175 × 77 mm (5 × 7 × 3 in).
