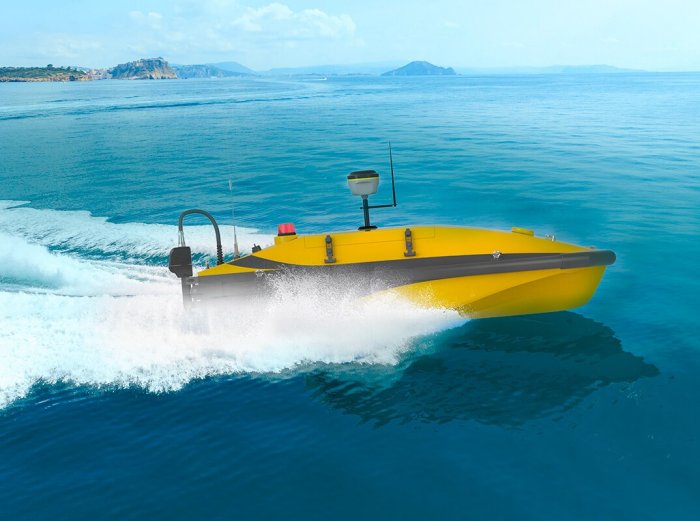

Oceanalpha - Model CL40Y -Remote Controlled Survey Boat

• Remote survey boat and boat recharger.
• Remote controller and recharger
• Communication data antenna
• Three propellers (1 spare), Prevent winding of aqua-plants.
• ADCP installation clamp
• Portable boat rack and flight case

Dedicated cabin to install instruments like ADCP, ecosounder, side scan sonar with a diameter of 5 to 18cm.

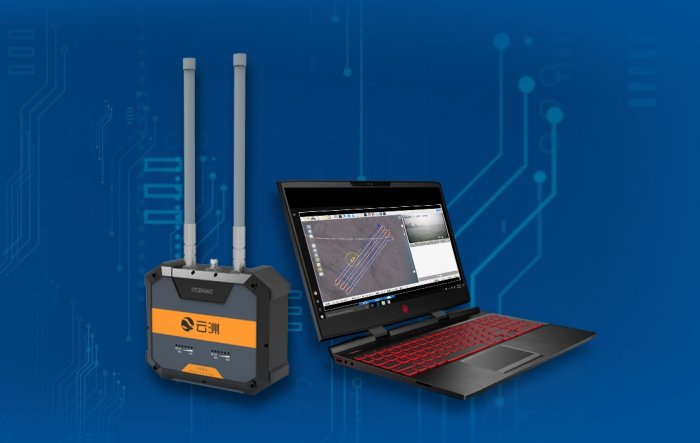

• Both the USV and the instruments are operated by the base station.
• The USV can complete pre-planned missions autonomously and data can be sent back to operators in real-time.

The CL40Y has a plug and play outboard motor, high speed capabilities and is easy to maintain.

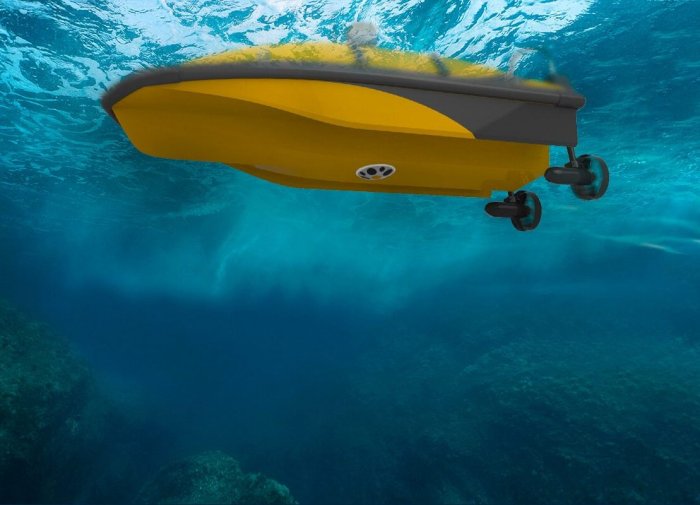

The trimaran hull design improves the stability of the USV while sailing at high speeds.

• Dimensions: 1630*710*370mm
• Weight: 33kg
• Material: Fiberglass composite with Kevlar&carbon fiber
• Communication Range: Autopilot:5km    Remote Control:2km
• Maximum Speed: 1.5m/s
• Endurance: 3 hours
• Payload: 15kg
