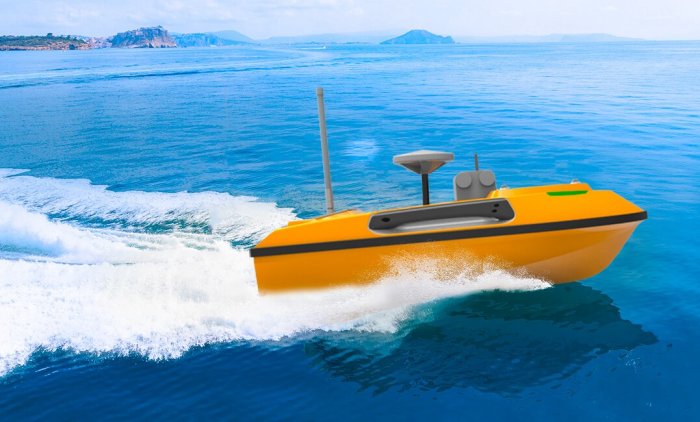

OceanAlpha - Model SS20Y -Remote Controlled Water Sampling Boat

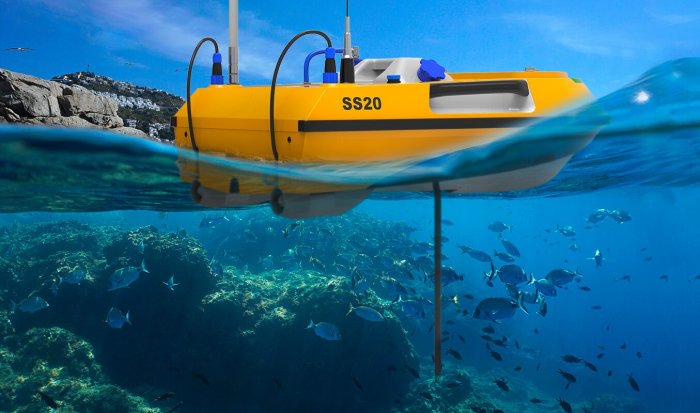

The USV can collect 10L water samples from one spot 0.5m under the water’s surface.

The innovative propeller system allows the USV to sail at a speed up to 5m/s and to avoid being entangled with water plants and rubbish.

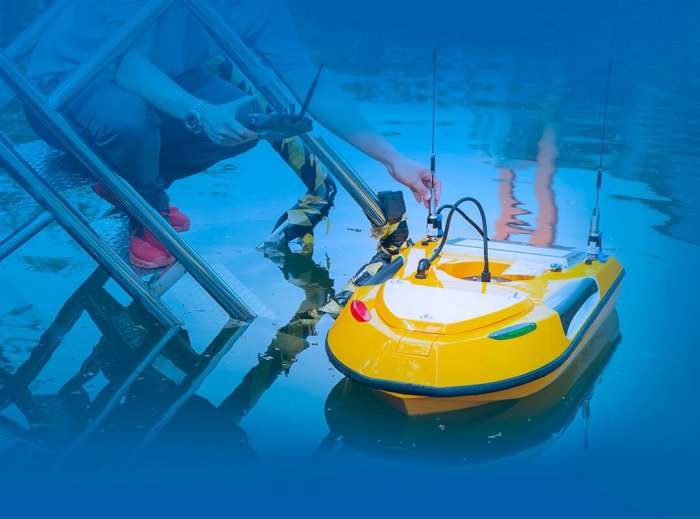

The USV is operated by remote controller so that the operator can enjoy higher levels of flexibility and safety in harsh working environments.

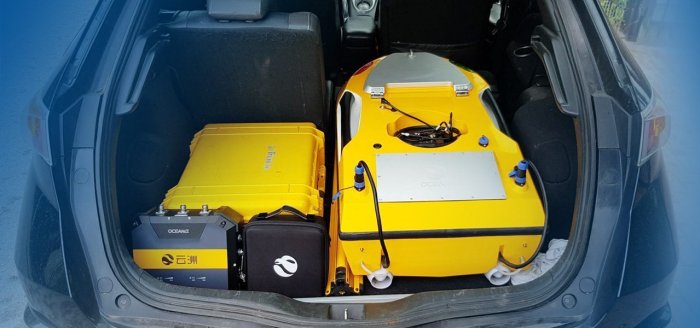

This USV only weighs 15kg and is 105cm long, so it can be carried by one person and transported in the trunk of a car.

• Physical:
• Hull Material: Carbon Fiber
• Weight(excl.ADCP): 14kg
• Payload: 10kg
• Motor: Waterjet propeller
• Communication:
• Remote Control: Radio Frequency
• Remote Control Range: 2 km
• Data Telemetry Range: 2 km *2.4G wireless Ethernet as option telemetry range 2km@2Mbps
• Performance:
• Survey Speed: 2-5knots(1-2.5m/s)
• Top Speed: 10knots(5m/s)
• Battery Endurance: 2hours@2.5m/s
• Battery Pack: 1x33V 40Ah
• Quick Battery Replacement   *Higher capacity battery pack as an option
• Options:
• Real time video monitoring:
• ADCP telemety module
