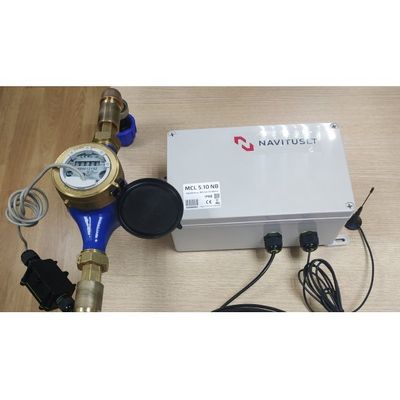

NAVITUS - Model MCL 5.10 NB -Remote Data Reading Modem

SHARE

MCL 5.10 NB is a controller for capturing pulse data and transmitting total values using Narrowband IoT technology for data transmission.

Most popular related searches
IoT data
transmission data

It is used to remotely transmit meter data using wireless Narrowband-IoT (NB-Iot) technology. It is designed to calculate pulse interface signals and transmit data over a Narrowband-IoT to the remote data center. The MCL 5.10 NB uses an internal removable battery to store and send data. The controller can be mounted on a 35mm DIN rail or mounted in IP65, IP68 resistance box.

Depending on the configuration, the MCL 5.10 NB controller supports the M-BUS communication interface.

MCL 5.10 NB supports remote software update automatic network provider selection according to inserted SIM card.

  • Power supply : Internal battery 3.6V
  • Connection interface : Pulse, NO, 24 VDC, 100 mA
  • Additional interface : MBUS
  • Network support : NarrowBand
