NWC CAPS - Model P8 -Remote Electric Cannon

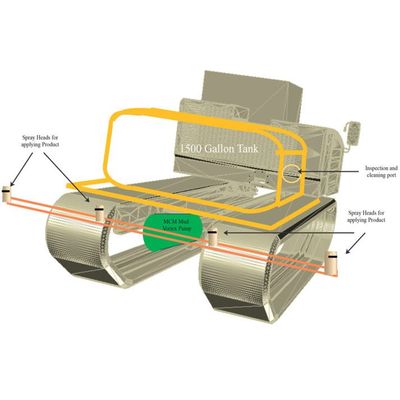

CAPS P8 comes fully equipped for your daily cover needs. All controls are conveniently placed in the cab of the tracked vehicle. The cover mixture is mixed and then loaded into a 1500 gallon tank. Available with either a progressive cavity pump or a high powered vortex pump. The P Series can apply an even cover while traveling upwards of 7 mph on 60% uphill/downhill grade and 40% sidehill grade. Comes with either a mega head hydraulic spray head valve or a series of BEX 50 degree 500 gpm Nozzles paired with a mega remote electric cannon mounted on the front of the machine.
Most popular related searches
progressive cavity pump
odor control system
cavity pump
vortex pump
diesel exhaust fluid tank
piston pump
odor control
hydraulic valve
high-pressure water
vehicle tracking
Engine
- Caterpillar Model: C7.1 Acert
- Turbo Diesel with Electronic Fuel Injection
- 6 cyclinder – 7L
- HP – 250 hp
- Maximum Speed: 6.2 MPH
- Fuel usage – 20 Gal. @ 3/4th gallons per hr.
- Low oil pressure and high water temperature automatic shutdown
Product Pump
- Progressive Cavity Pump OR Vortex Pump is hydraulically driven off Eaton piston pump
Storage Tanks
- FUEL: 65 US gallons
- DEF Tank: 7.1
- MAIN TANK: 1500 Gallon Capacity
Spray Head Valves
- Options 1: Mega head hydraulic spray head valves with Mega remote electric cannon mounted on the front of the machine
- Option 2: Series of box 50 degree 5oogpm nozzles with Mega remote electric cannon mounted on the front of machine
Weights
- Empty Weight: 11340 lbs
- Maximum Payload Weight: 16000 lbs
Tracks
- Metal Embedded Rubber Tracks
- Width 29.5 Inches
- Tensioner: Auto Hydraulic Track Tensioning
- Ground Pressure | Unloaded: 2.9psi / Loaded 5.91psi
- Tandem suspension with 24 Inche Wheel Diam.
Cab
- 1 Person Cab with 3 point seatbelt
- Parking brake linked with seatbelt
- lockable door
- Inputs – Steering wheel, forward, neutral, reverse switch with progressive speed pedal and throttle
- outputs – Independent control of each track
- Controls – Microprocessor with color display
Other
- Exterior lighting – Two halogen front lights / 1 rear light
- 2 -12v power outlets
- Electrical System – 12v with 150A altenator
- Inputs – Steering wheel
Batteries
- 2x 1,150 CCA
- Type: AGM
