Monarch Instrument - Model ROLS -6180-029 -Remote Optical Laser Sensor

Remote Optical Laser Sensor – Five ROLS models to choose from including ROLS and ROLS24!

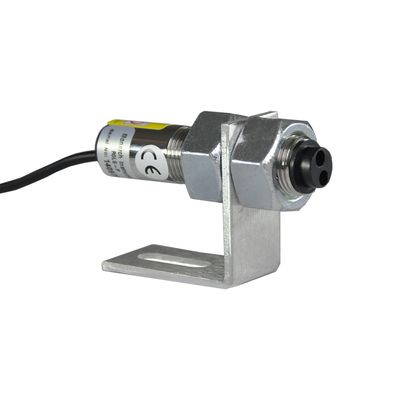

Very versatile laser sensor that include an 8 ft. cable, mounting bracket with jam nuts, and 12 inches of T-5 Reflective Tape. ROLS-P-25 and ROLS24-W-25 include a 25 ft. cable.

Model ROLS-P: Remote Optical Laser Sensor with 8 ft. cable, 1/8" [3.5 mm] phone plug connector, mounting bracket with jam nuts, and 12 inches of T-5 Reflective Tape

Model ROLS-P-25: Remote Optical Laser Sensor with 25 ft. cable, 1/8" [3.5 mm] phone plug connector, mounting bracket with jam nuts, and 12 inches of T-5 Reflective Tape

Model ROLS-W: Remote Optical Laser Sensor with 8 ft. cable, 3 tinned leads, mounting bracket with jam nuts, and 12 inches of T-5 Reflective Tape

Model ROLS24-W: Remote Optical Laser Sensor with 24 V dc input power, 8 ft. cable, 3 tinned leads, mounting bracket with jam nuts, and 12 inches of T-5 Reflective Tape

Model ROLS24-W-25: Remote Optical Laser Sensor with 24 V dc input power, 25 ft. cable, 3 tinned leads, mounting bracket with jam nuts, and 12 inches of T-5 Reflective Tape

• Speed Range: 1-250,000 RPM
• Illumination: Visible Red Laser, Class 2 (per IEC 60825-1:2014)
• Classification: This product complies with IEC60825-1 Ed. 3 and 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50 of June 2007
• Max Laser Output: 1 mW max
• Pulse Duration: Continuous
• Laser Wavelength: 650nm (visible red)
• Beam Divergence: < 18 mrad
• Beam Diameter: 4 x 7 mm typical at 2 m
• Laser Diode Life: 8,000 operating hours MTBF (1-year warranty)
• On-Target Indicator: Green LED on the wire end cap
• Operating Range: Up to 25 ft. [7.6 m] and 60 degrees offset from the target
• Power Requirement :
• ROLS: 3.3 – 15 V dc, 0.4W max
• ROLS24-W: 24 V dc ±10%, 0.4W max
• NOTE: 24 V dc power input option available see ordering information.
• Output :
• ROLS: Open collector with an internal pull-up resistor to supply voltage; positive pulse when target present; Output Voltage = Supply Voltage
• ROLS24-W: Open collector with an internal pull-up resistor (5600 ohms) to supply voltage minus ~5V; positive pulse when a target is present
• Optional Outputs Available - Open Collector or TTL pulse (3.3 V dc), Negative pulse (contact factory)
• Operating Temp: 14 °F to 158 °F (-10 °C to 70 °C)
• Humidity: Maximum relative humidity 80% for temperature up to 88 °F (31 °C)
• decreasing linearly to 50% relative humidity 104 °F (40 °C)
• Connection: 3.5 mm [1/8 inch] male stereo plug (ROLS-P);
• Tinned wires (ROLS-W)
• Material: 303 stainless steel supplied with two M18 jam nuts and mounting bracket
• Lens: Acrylic plastic
• Dimensions: Threaded tube 3.12 in. x 0.71 in. diameter [18 x 79.4 mm] long

*Specifications are subject to change without notice.
