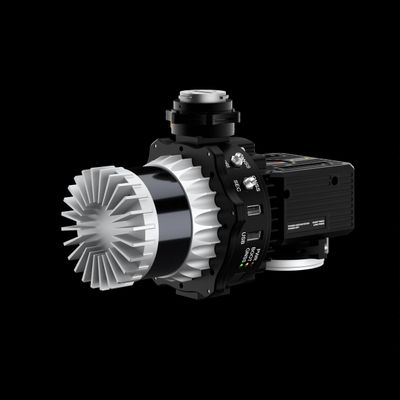

RESEPI OUSTER - Model Lite OS1-64 -Remote Sensing Payload Instrument

SHARE

RESEPI™ (Remote Sensing Payload Instrument) is a sensor-fusion platform designed for accuracy-focused remote sensing applications. RESEPI utilizes a high-performance Inertial Labs INS (GPS-Aided Inertial Navigation System) with a tactical-grade IMU and a high-accuracy single or dual-antenna CNSS receiver, integrated with a Linux-based processing core and data-logging software. The platform also provides a WiFi interface, optional imaging module, and external cellular modem for RTCM corrections. RESEPI can be operated by a single hardware button or from a wirelessly connected device via a simple web interface.

Most popular related searches
remote sensing
GPS-aided inertial navigation system
remote sensing system
inertial navigation system
LiDAR remote sensing
utility mapping
LiDAR
process data software
LiDAR scanning
LiDAR system

RESEPI, equipped with the OUSTER OS1-64 REV7 LiDAR, is one of the latest offerings from Inertial Labs and one of the most unique and powerful in nature. This lightweight LiDAR features multiple scanning modes and operational workflows that allow users to control their collection procedures and accuracy. With an extended vertical FOV of 45° and compact design, you can be confident that your projects can be completed with minimal time spent in data collection.

The RESEPI OS1-64 was strategically designed for multiple application bases with mounting options for mobile vehicles, DJI-supported drones (DJI M300, M600 Pro), custom drones, handheld platforms, vehicles, the I reelly Alt.,] X, and many more. Because of this diverse mounting portfolio, the RESEPI can be used for many services, including utilities mapping (power lines), construction volumetrics, site surveying, precision agriculture, forestry, mining operations, and much more.

  • System Vertical Accuracy: 3 - 5 cm(1)
  • Precision: 4 - 6 cm(2)
  • Precision (lo Noise Removal): 2 - 4 cm (3)
  • Recommended AGL: Up to 100 m
  • Weight: 1.4 kg (with camera), 1.0 kg (without camera)
  • Dimensions: 20.6 x 16.5 x 14.2 (cm)
  • Max Flight Time (COIM300): 33 minutes
  • External Storage: 256 GB USB Included
  • System Computer: Quad Core, 1GB RAM, 8GBeMMC
  • Operational Voltage Range: 9-45V
  • Power Consumption: 17W
