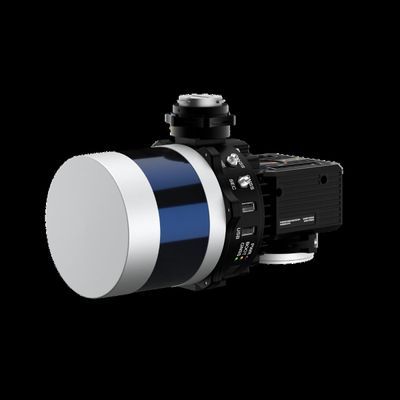

RESEPI VELODYNE - Model Lite VLP-16 -Remote Sensing Payload Instrument
RESEPI (Remote Sensing Payload Instrument) is a sensor-fusion platform designed for accuracy-focused remote sensing applications. RESEPI utilizes a high-performance Inertial Labs INS (GPS-Aided Inertial Navigation System) with a tactical-grade IMU and a high-accuracy single or dual-antenna CNSS receiver, integrated with a Linux-based processing core and data-logging software. The platform also provides a WiFi interface, optional imaging module, and external cellular modem for RTCM corrections. RESEPI can be operated by a single hardware button or from a wirelessly connected device via a simple web interface
RESEPI, equipped with VELODYNE`s VLP-16 LiDAR, is a well-known staple in the industry. For years, the VELODYNE VLP-16 has been known for its affordability and reliability and was a pioneer in the remote sensing industry. With its high accuracy and performance at lower altitudes, it will be a perfect fit for users that execute data collection with consistent flight parameters at lower altitudes.
The RESEPI VLP-16 has ideal use cases in applications including but not limited to utility mapping (power lines), construction volumetrics, site surveying, precision agriculture, forestry, and mining operations. It`s reliable vertical accuracy and low beam divergence of 0.17° (H), 0.09° (V) made it a suitable system to be selected for integration into the mapping and surveying solutions. This system has many different mounting options and can be used with mobile vehicles, DJI-supported drones (DJI M300, M600 Pro), custom drones, handheld platforms, vehicles, the Freefly Alta-X, and many more.
- System Vertical Accuracy: 3 - 5 cm(1):
- Precision: 4 - 6 cm(2)
- Precision (lo Noise Removal): 2 - 4 cm (3)
- Recommended AGL: Up to 65 m
- Weight: 1.7 kg (with camera), 13 kg (without camera)
- Dimensions: 20.5 x 14.2 x 14.1 (cm)
- Max Flight Time (COI M300): 33 minutes
- External Storage: 256 CB USB Included
- System Computer: Quad Core, 1GB RAM, 8GBeMMC
- Operational Voltage Range: 9-45V
- Power Consumption: 15W
