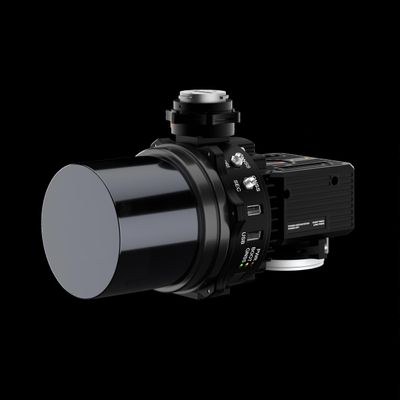

RESEPI QUANERGY - Model Lite M8-PLUS -Remote Sensing Payload Instrument
RESEPI (Remote Sensing Payload Instrument) is a sensor-fusion platform designed for accuracy-focused remote sensing applications. RESEPI utilizes a high-performance Inertial Labs INS (GPS-Aided Inertial Navigation System) with a tactical-grade IMU and a high-accuracy single or dual-antenna CNSS receiver, integrated with a Linux-based processing core and data-logging software. The platform also provides a WiFi interface, optional imaging module, and external cellular modem for RTCM corrections. RESEPI can be operated by a single hardware button or from a wirelessly connected device via a simple web interface
RESEPI. equipped with QUANERCY`S M8-PLUS LiDAR, offers the best price-to-performance ratio in class for point density and range, allowing users to benefit from a wide range of operational modes, primarily in applications requiring clear feature distinction.
The RESEPI with QUANERGY`s M8-Plus LiDAR offers a system that has well-rounded performance and operational ranges of up to 100 m and Great point density. This system was strategically designed for multiple application bases with mounting options for mobile vehicles, DJI supported drones (DJI M300, M600 Pro), custom drones, handheld platforms, vehicles, the Freefly Alta-X, and many more. Because of this diverse mounting portfolio and its 360 FOV; the RESEPI can be used for many services, including utility mapping (power lines), construction volumetrics, site surveying, precision agriculture, forestry, mining operations, and much more.
- System Vertical Accuracy: 5 - 10 cm(1)
- Recommended AGL: Up to 100 m
- Weight: 1.8 kg (with camera), 1.4 kg (without camera)
- Dimensions: 21.9x15.2x14.2 (cm)
- Max Flight Time (DJI M300): 33 minutes
- External Storage: 256 CB USB Included
- System Computer: Quad Core, 1CB RAM, 8GBeMMC
- Operational Voltage Range: 9-45V
- Power Consumption: 23W
