Lighthouse - Model Remote AV -Remote Temperature Sensor

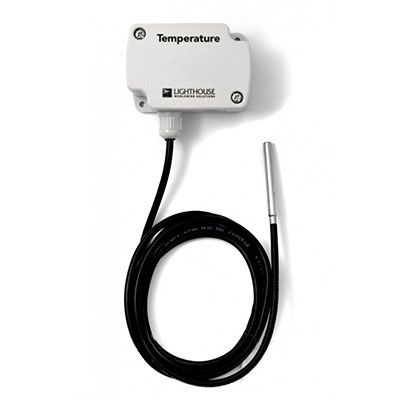

The Remote RTD is a small cost-effective high accuracy temperature sensor suited for cleanroom applications and for monitoring laboratory equipment where product is stored. This sensor is ideal for incubator, oven, fridge, and freezer applications in your facility or basic room monitoring. Remote Temperature Sensor: Range -30 to +105°C.

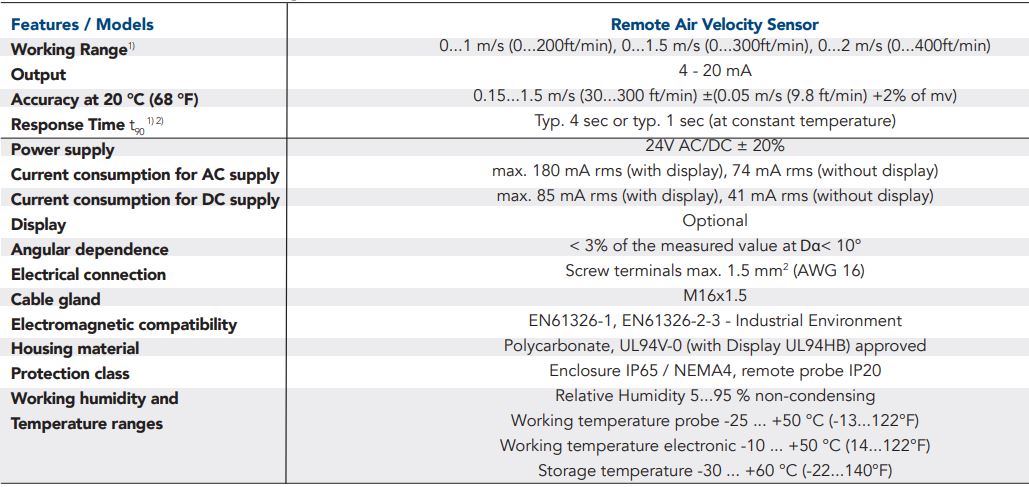

The Remote AV Sensor is the ideal solution for unidirectional flow and ventilation monitoring in cleanroom environments and for HVAC applications.
The Remote AV Sensor has a highly accurate sensor for measurement of low air velocity and is most suitable for cleanroom and controlled environment device monitoring such as isolators, cabinets, and biological safety cabinets. Only one CAT 5/6 cable is required for power and communications.
- Range -30 to +105°C (-22° F to 221° F
- Accuracy ±0.3°C (0.54°F) at 20°
- (incl. hysteresis, non-linearity and repeatability
- Sensing element Pt 1000 (class A
- Analog Output ( 4 – 20-m
- Remote probe option with different cable length
- (0.5, 2 and 3 meter lengths
- Long term sensor stability
- Smooth cover and cleanroom friendly enclosure
- Protected PCB
- Simple on-site installation
- Cleanroom wipe down
- IP65 / NEMA 4 rating
- 2 year warranty
- Selectable by jumper
- Response time t90 is measured from the beginning of a step change of air velocity to the moment of reaching 90% of the step.
