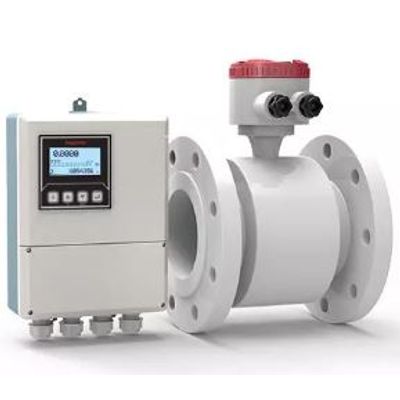

Sinomeasure - Model SIN-LDG -Remote Type Electromagnetic Flowmeter
SIN-LDG Remote Type electromagnetic flowmeter is applicable for all conductive liquids, such as water, acids, alkalis, slurries and many others. Typical applications are monitoring accurate measurements in liquid, metering and custody transfer. It can display both instantaneous and cumulative flow, and supports analog output, communication output and relay control functions.
Most popular related searches
electromagnetic flow meter
flow meter
domestic water industry
electrical conductivity
raw water
industrial water
domestic water
water industry
industrial wastewater
industrial wastewater process
- Accuracy: ±0.5%(Flow speed > 1m/s)
- Reliably: 0.15%
- Electric conductivity: Water: Min. 20μS/cm
- Other liquid: Min. 5μS/cm
- Flange: ANSI/JIS/DIN DN15…1000
- Ingress protection: IP68
- Product: Remote type electromagnetic flow meter
- Model: SIN-LDG
- Diameter Nominal: DN10~DN1000
- Nominal Pressure: 0.6~4.0MPa
- Accuracy: ±0.5%, ±2mm/s (flow rate<1m/s)
- Liner material: PFA, F46, Neoprene, PTFE, FEP
- Electrode material: Stainless steel SUS316, Hastelloy C, Titanium,
- Tantalum Platinum-iridium
- Medium Temperature: Integral type: -10?~120?
- Split type: -25?~120?
- Power supply: 100-240VAC, 50/60Hz
- Ambient Temperature: -10?~60?
- Electrical conductivity: Water 20μS/cm other medium 5μS/cm
- Structure type: Tegral type, split type
- Ingress protection: IP68
- Product Standard: JB/T 9248-1999 Electromagnetic Flow Meter
Electromagnetic flow meters have been used throughout industries for more than 60 years. These meters are applicable for all conductive liquids, such as: Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc.
