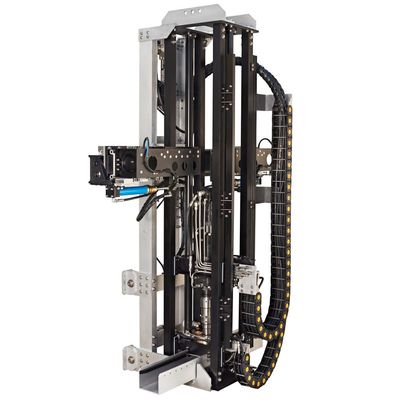

Williamson & Associates - Model ROCS -Remotely Operated Core Sampler
Our latest drill system, the ROCS (Remotely Operated Core Sampler), is designed to be mounted on a work class ROV, making this tool one of the most flexible and economic ways of obtaining deep sea core samples. ROCS core drills have been used in the exploration of cobalt-rich ferromanganese crusts, seafloor massive sulfides and other seabed mineral deposits. The system is ideal for recovering targeted core samples at extreme depths. The multi-tool magazine and tooling options add flexibility and time savings to deep sea exploration operations.
4000 Meter Rated
Corrosion resistant anodized aluminum and stainless steel and polymer construction
Simple Tool Handling
Spline and detent tool connection method (simpli ed tool handling and emergency release capablities)
Precision Drill Feed
Integral hydraulic control manifold with precision “balanced” drill feed
Up to 4 Tools Per Dive
ROCS Multi Core Magazine assembly allows for up to four cores per dive
Sensor Package
Embedded sensor suite provides feedback on all parameters necessary for quality coring
Control Software
Intuative and adaptable Windows based control GUI
General
Depth Rating: 4000 m
Total Weight In Air: 300 Kg
Height: 2287 mm
Width: 1681mm (With Magazine)
Depth: 868 mm
Maximum RPM: 1000 RPM
Maximum Weight on Bit: 100 Kg
Maximum Core Breaking Force: 4500 Kg
Core Diameter: 70mm (Nominal)
Core Length: 1000mm (Nominal)
Maximum Sample Capacity: Four tools
Hydraulic
Global ow requirement: 18-20 GPM
System Pressure: 3000 psi
Power and Telemetry
Power Requirement: 24VDC 8A
COMS: RS232
