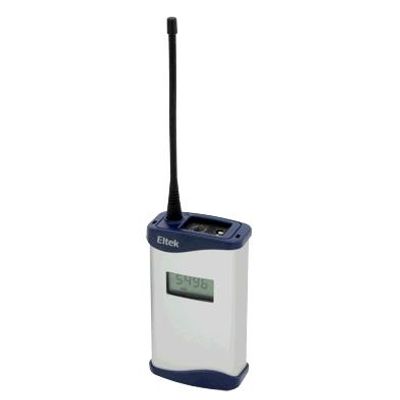

GenII - Model RP250GDDA -Repeater

SHARE

Specially designed for repeating signals through an RF barrier.

Most popular related searches
data logger
  • The RP250GDDA has all the features of the RP250GD, with the addition of 2x antenna SMA connectors; with one antenna to be placed within the barrier, and one on the far side.
  • The RP250GD repeater receives and rebroadcasts signals from GenII transmitters, significantly extending the distance over which a system can operate. Multiple repeaters can be used in a system.

Please note: the antenna wire will need to penetrate the RF barrier. Typically, an installation would warrant 2x LW-ANT antennae.

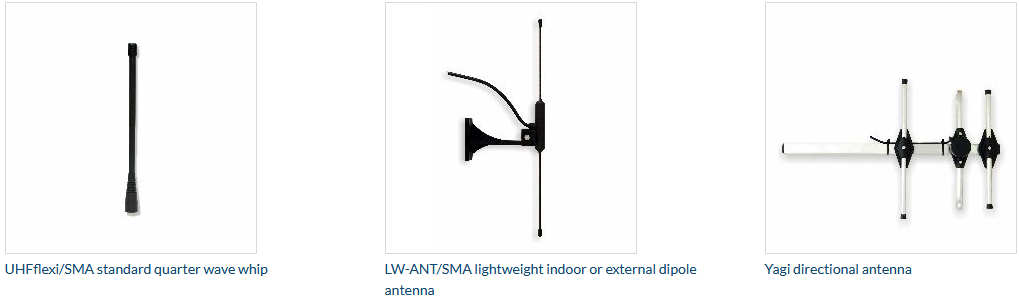

The UHF flexi/SMA standard quarter wave whip antenna and LW-ANT/SMA antenna have a similar performance profile; but the LW-ANT/SMA can be used when the logger is required to be placed inside a screened cabinet, or better reception can be achieved by placing the antenna in a particular location where it would not be practical to locate a logger.Yagi directional antennae are useful in outdoors applications for achieving a longer distance between the transmitter and receiver. Please note that in the UK, these antennae should only be used with a logger or receiver; please check your local regulations if you are outside the UK.

  • Ambient temperature: -10 to +55°C
  • Humidity: Up to 95% (non condensing)
  • Power supply: 12V DC (Type MP12U, 100-250V AC input)
  • Backup batteries type: Ni MH pack
  • Backup battery life: Typically 24 to 48 hours dependant on activity
  • Dimensions: D 41mm x W 80mm x H 125mm
  • Weight: 500g inc. batteries
  • Receiver/Transmitter: Crystal controlled
  • Antenna connector: SMA 50 ohm female
