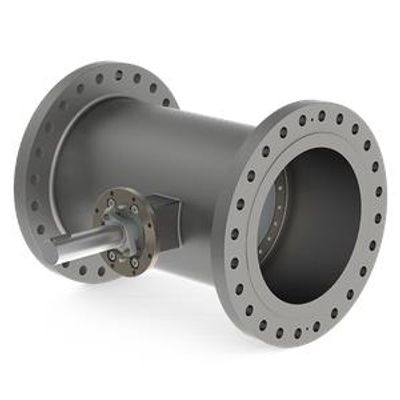

Quadax - Replacement Gate Valve
The design of the gate valve replacement was developed to replace a ball valve or a gate valve without modification of the piping. Unlike other valve principles, Quadax ® saves space, weight and reduces the cost of your system.
Most popular related searches
gate valve
gate valve replacement
butterfly valve
ball valve
PTFE butterfly valve
steel butterfly valve
PTFE valve

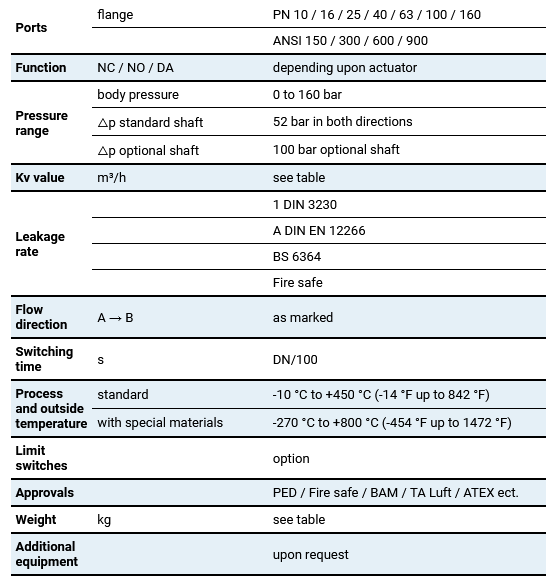

- Standard: -10 °C up to +450 °C (-14 °F up to 842 °F)
- With special materials: -270 °C up to +800 °C (-454 °F up to 1472 °F)
- Butterfly valve: 4-offset
- Pressure range: PN 0-160 bar
- Nominal diameter: DN 50-1800 mm
- Connection: flange
- Housing materials: Steel, stainless steel,
- Special materials: (Duplex, Inconel, Bronze)
Seat materials
- Inconel
- Others on request
Sealing materials
- Graphite / stainless steel, Inconel, stainless steel, PTFE
