Lifeierte - Replacement Hydac Filter Assembly

1. Filter housings must be earthed.
2. When using electrical clogging indicators, the electrical power supply to the system must be switched off before removing the clogging indicator connector.
3. Filters with switching valve are designed to have a permissible leakage depending on the operating medium.

• Metallurgy & Steel
• Power Generation
• Oil & Gas
• Food & Beverage
• Renewable Energy
• Machine Tools
• Presses & Forming Machines
• Railway Technology
• Pulp & Paper Industry
• Plastic Injection Moulding Machines
• Recycling technology
• Scrap & Waste Recycling
• Mining & Materials Handling
• Process Compressors & Blowers
• Large engines
• Tyre industry

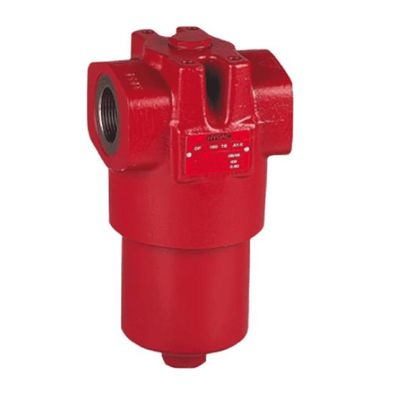

DF high pressure hydac filter

The DF high pressure hydac filters are designed in accordance with international regulations. They consist of a filter head and a screw-in filter bowl. DFF filters are suitable for flow in both directions.

Popular model of hydac DF high pressure filter

1. The filter can be installed directly on the fuel tank cover, or can be installed with a pipe.
2. Equipped with filter element pollution blockage signaler and bypass valve to improve the reliability of hydraulic communication. When the filter element is blocked by pollutants or the system liquid temperature is too low, flow pulsation and other factors cause the oil inlet pressure to be 0.35MPa, the The communicator will send a signal indicating that the filter element should be replaced in time or the temperature should be raised. In this case, when the machine cannot be stopped immediately to deal with these faults, the bypass valve set on the filter element will automatically open (the opening pressure is 0.4MPa).
3. The filter element is made of glass fiber, which has the advantages of high filtration precision, large oil passing capacity, small original pressure loss, and large dirt holding capacity. Filtration efficiency n≥99.5% conforms to ISO standard.

Popular model of hydac DF high pressure filter

• DFBN/HC 330 G 5 B 1.1 / -B6: DFBN/HC 660F10D1.0/L220-16
• DFBN/HC 30 TB5 C1.0: DF BH/HC 240TE10D1.X
• DFBN/HC 660 F10 D1.0/L220-16: DFBN/HC 660G10D1.0/L230
• DFBH/HC 60 TC10 D1.0/L24: DFBNHC330TE BM 1.X/12-B3
• DFBN/HC 160 QE5 C-X-L24B3: DFBN/HC330TF5D1.0/-L24ES
• DF BN/HC 110TC10A 1.0/-B6: DFBH/HC60G5D1.1/L24SO356
• DF ON 240 Q E 10 A 1.0: DFBN/HC240G10B1X/-B6
• DF ON 500 TF10 D1.X/-L24-B6: DFON60TC5D1.0/-L24
