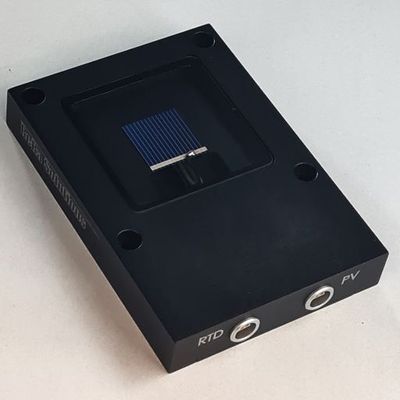

ReRa Solutions - High-Quality Silicon Reference Cell for Solar Simulator Irradiance Levels
The Silicon Reference Cell from ReRa Solutions is a precision-engineered sensor designed to ascertain the irradiance levels of solar simulators. Leveraging advanced calibration techniques at the Radboud University Nijmegen PV Measurement Facility, the reference cell is benchmarked against an NREL calibrated reference cell, ensuring high reliability and accuracy for indoor applications. The reference cell adheres to the stringent standards set by the World Photovoltaic Scale (WPVS) and complies with IEC 904-2 requirements. Optional KG windows are available to cater to various specific cell material measurements, such as KG1, KG2, KG3, and KG5. The product lineup includes models RR-1001 and RR-1002, which differ by their shunted and open configurations respectively. The inclusion of the quartz window as a standard feature enhances its suitability for precise measurements, making it an essential tool for photovoltaic research and testing.
The standard Mono Crystalline Silicon Reference Cell is a high-quality precision sensor for the determination of solar simulator irradiance levels. ReRa Solutions uses the Radboud University Nijmegen PV Measurement Facility to calibrate the cells. The calibration is done against an NREL calibrated reference cell. This results in reference cells which are very well suited for indoor applications. All reference cells meet the standards of the World Photovoltaic Scale (WPVS) and the requirements of IEC 904-2.
- Mono crystalline silicon solar cell
- Calibrated against primary references
- Mismatch corrected
- Irradiance and temperature readout
- Protective Quartz window
- Several filter options (KG# window) to match any spectral response (optional)
- Open or shunted version
- 2 PT100 LEMO sockets
- Including full calibration report (IV-curve plot, Isc, Voc, Impp, Vmpp, Fill Factor and Efficiency)
- Including 4-wire reference cell cable
- Including protective suitcase
- Shunted Silicon Reference Cell (RR-1001)
- Open Silicon Reference Cell (RR-1002)
All cells can be ordered with a KG window for measurements of specific cell materials. For example: KG3 window (RR-1001KG3)
- MODEL : Shunted (RR-1001), Open (RR-1002)
- OPTIONAL KG WINDOW : Quartz Window (standard), KG1 Window (RR100xKG1), KG2 Window (RR100xKG2), KG3 Window (RR100xKG3), KG5 Window (RR-100xKG5)
