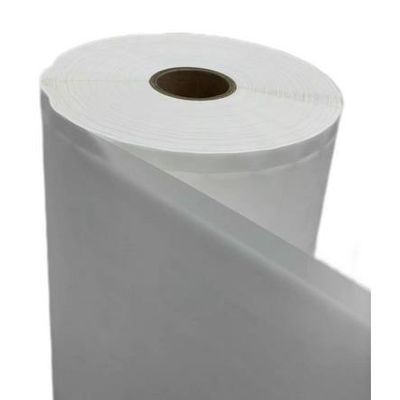

Longmem - Model LM-XULP-R+-FL1 -Residential Extreme Ultra Low Pressure Thin-Flim Composite Membrane

LM-XULP-R+-FL1,Extreme Ultra Low Pressure R+ Thin-Flim Composite Membrane Introduction

An Extreme Ultra Low Pressure R+ Thin-Film Composite (TFC) membrane is a type of membrane used in water treatment processes. It is specifically designed to operate at extremely low pressure differentials, making it highly efficient in terms of energy consumption.

The term "Thin-Film Composite refers to the construction of the membrane. It consists of multiple layers, with a thin layer of selective material that allows water molecules to pass through while blocking contaminants. The composite structure provides strength and stability to the membrane.

The "R+" in Extreme Ultra Low Pressure R+ indicates that the membrane is designed for high GPD and Rejection Rate.

This type of membrane is known for its high contaminant removal efficiency, allowing it to effectively remove bacteria, viruses, organic compounds, and heavy metals from water sources. Despite its ultra-low-pressure operation, it offers a high permeate flux rate due to optimized surface area.

Overall, an Extreme Ultra Low Pressure R+ Thin-Film Composite Membrane offers significant advantages in terms of energy efficiency and performance in various water treatment applications.

The LM-XULP-R+-FL1 is a specific type of Ultra Low Pressure Thin-Film Composite (TFC) membrane manufactured by Jiangsu Longmem Technology Co., Ltd.. This particular membrane is designed for use in water treatment systems.

The manufacturing process for the LM-XULP-R+-FL1 membrane several steps.

First, a thin polyamide layer is formed on top of a porous support material or substrate. This polyamide layer is responsible for the selectiveability of the membrane, allowing water molecules to pass through while blocking impurities.

Next, the membrane goes through a bonding process where it is to other layers that provide additional strength and support. These layers may include non-woven fabrics or mesh materials that enhance the mechanical properties of the membrane.

After bonding, the membranes are cut into individual sheets or rolls of desired dimensions. The membranes are then for quality control purposes to ensure they meet specific performance standards and rejection rates.

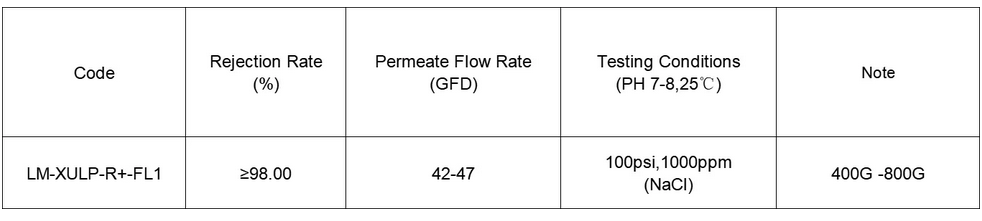

The LM-XULP-R+-FL1 Ultra Low Pressure TFC membranes are known for their high permeability and rejection rates, making them suitable for applications where low-pressure operation is required. Membranes have been specifically engineered to minimize energy consumption while still delivering excellent water quality.
