Miratech - Model TSR -PR/PL -Residential Grad Cowl Silencer
Spiral chamber design allows for low back pressure as exhaust flows through a uniform cross-section to diffuse and progressively attenuate noise. 1/3 the size and 1/2 the weight compared to most reactive silencers. Aluminized steel construction. Coated with satin black paint rated to 1200°F.
Each type of housing is available in two sizes and can hold up to two square VORTEX® elements, which are available in full or half panels to achieve different levels of emissions reductions. The housing includes two (2) ½” NPT couplings located in the inlet and outlet flange necks for instrument fittings and one (1) ½” NPT drain.
Access to the catalyst is provided thr
CUSTOMIZATION

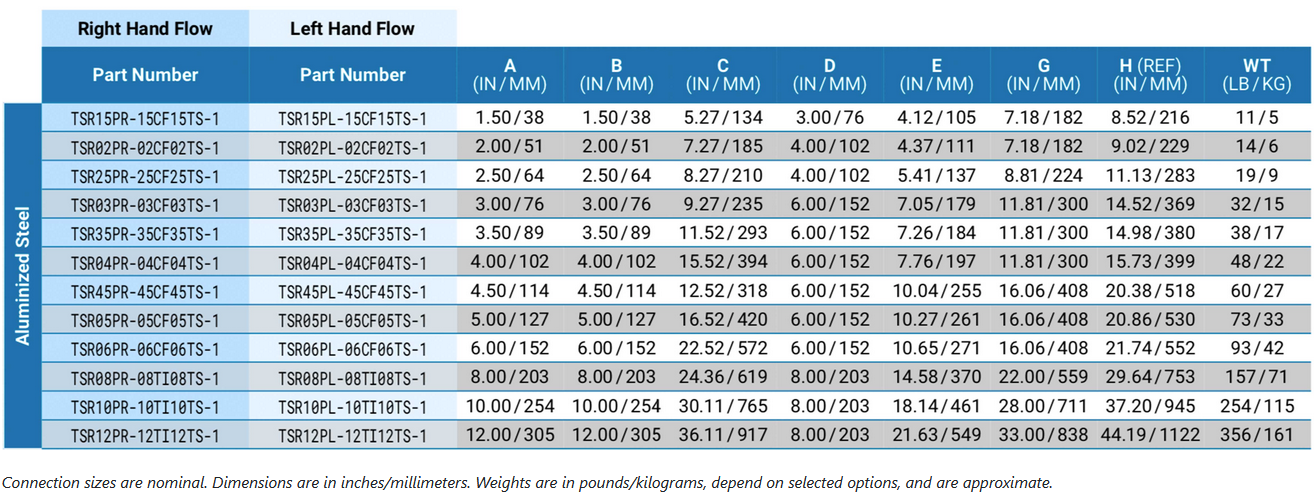

- Chart refers to standard product offering
- Custom configurations, materials, connections, reversible flow, overall dimensions, etc.
- Contact factory with your project’s design requirements and specifications
- Thermal Insulation Blankets to suit all configurations
Product Legend
- a. Flow (S – Standard, R – Reversed)
- c. Inlet/Outlet Connections (0 – Slip Fit Inlet/Tube Outlet, 1 – ANSI Flange Inlet & Outlet, 2 – ANSI Flange Inlet/Tube Outlet, 3 – Male NPT Inlet & Outlet, 4 – Female NPT Inlet & Outlet, 5 – Male NPT Inlet/Tube Outlet, 6 – Female NPT Inlet/Tube Outlet, 7 – Non-slotted OD Inlet/Tube Outlet, 8 – Slip Fit Inlet/Slotted ID Outlet)
ough a simple cover plate design, thus eliminating the need to remove the housing from the exhaust piping to service the catalyst. Plus, the VX Series’ slide-in feature, which does not rely on moving parts or a complex loading apparatus, allows users to safely and easily lift/install/remove catalysts. Furthermore, the convenient location of the ½” NPT ports allows for easy installation of pressure gauges, thermocouples, or sample tubes to monitor catalyst performance. The benefits to operators are simple and quick installation, maintenance, and performance monitoring, all of which save time and money.
