Bluewav Technology Co.,Ltd.

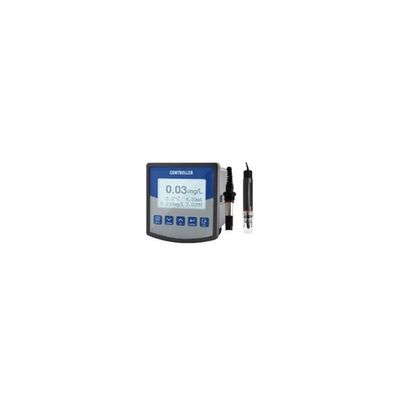

BlueWav - Model RS485 -Residual Chlorine Concentration Meter Gauge
This meter can gauge concentration 0-2ppm,0-20ppm. Widely used in water plants, medical disinfection equipment, hypochlorous acid generator, sodium hypochlorite generators and other sterilization and disinfection occasions; other similar applications.
Most popular related searches
residual chlorine
sodium hypochlorite generation
hypochlorous acid generation
hypochlorous acid generator
chlorine meter
chlorination
hypochlorous acid
disinfection system
hypochlorite generation
sodium hypochlorite
- Detection method: Polarography
- Measuring range: residual chlorine:0-2mg/L,0-20.00mg/L; PH:0-14; temperture:0-60℃
- Resolution: 0.001mg/L,0.01mg/L,0.01pH,0.1℃
- Accuracy: Better than ±2% or ±0.02mg/L, ±2% or ±0.02mg/L, ±0.05pH, ±0.5℃
- Compensation function: Manual/automatic PH compensation function (0-14) and temperature compensation function (0-60°C)
- Control interface: Two groups of ON/OFF relay contacts, divided into high point and low point alarm signal photoelectric isolation output
- Signal isolated output: Photocoupler isolation protection 4 ~ 20mA signal output
- Relay: Relay hysteresis can be set arbitrarily, relay load 3A 220VAC/24VDC
- Working conditions: Ambient temperature is 0~60℃, relative humidity≤90%
- Output load: Load<500Ω(0-10mA), load<750Ω(4-20mA)
- Operating Voltage: 220VAC±10%, 50/60Hz or order DC24V and DC12V power supply
- Size: 100x106x168mm
- Weight: 0.9Kg
- Degree of protection: IP65
