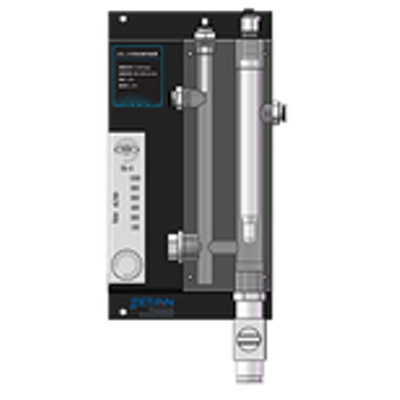

Zetian - Model ZCL-01 -Residual Chlorine Sensor
The ZCL-01 Residual Cl 2 Sensor is an intelligent electrode adopting RS485 communication interface and standard Modbus protocol. Based on Constant Voltage Method, the sensor employs design of double platinum loops. It can be widely applied to residual chlorine monitoring in municipal water supply, rural water supply, waterworks, drinking water sources and hospital wastewater, etc.
Most popular related searches
residual chlorine
municipal water supply
water monitoring sensor
drinking water source
residual chlorine monitoring
residual chlorine sensor
water quality sensor
water supply
municipal water
water quality
- With corrosion resistant shell and IP68, applicable to all kinds of poor working conditions
- Adopt design of double platinum loops, the service life is long.
- Self-designed flow cell is equipped with flow stabilization function
- With temperature compensation algorithm, the detection precision is high
- Use RS485 communication interface and standard Modbus protocol, convenient for integration
title: val
- Working principle: Constant Voltage Method
- Measurement range: 0.02 ~20 mg/L
- Indication error: ±5%
- Repeatability: ±2%
- Zero drift: ±0.01mg/L
- Span drift: ±5%
- LLOQ: LLOQ 0.02mg/L
- Communication interface: RS485, standard Modbus protocol
- MBTF: >720h/time
- Working condition: 0℃~60℃, 101KPa
- Dimension: 170x60x30(mm)
