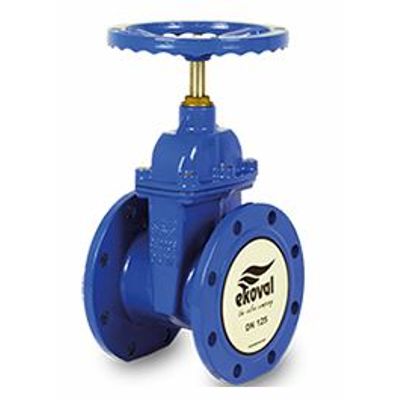

Ekoval - Model EKO2100 -Resilient Seal Gate Valve
Pressure Ratings: PN10,16,25,40. Design Standard: BS EN 1171. Face to Face Length: EN 558-1. Valve Test: EN 12266-1. Valve Marking: EN 19. Flange Standard: EN 1092-2. Product Group: Gate Valve. Medium: Water, Sewage.
Most popular related searches
gate valve
resilient seal gate valve
valve testing
electric actuator
drinking water
flow control valve
position indicator
isolation valve
bonnet gasket
epoxy coating
- Valve Design According to BS EN 1171 – EN 1074-2
- Face to Face Length According to EN 558-1 Basic Series 14 (F4)
- Flanged Connection According to EN 1092-2
- Valve test According to EN 12266-
- Corrosion Resistant Stem Sealing
- Triple O-Rings
- Non-rising stem type
- Soft seated, low operating Torque.
- This Product is WRAS Drinking Water Approved
- Suitable for both sewage and Drinking water applications.
- Suitable for Underground Applications.
- Can be used as ISOLATION VALVE
- NBR Coated Wedge can be used for Nonflammable Oil Applications
- Application Fields and Temperatures of
- EKO2100 Series valves vary according to the selection of the seat.
- Body: GGG50
- Bonnet: GGG50 -Wedge: GGG50 EPDM Vulcanized
- Bonnet Bolts: Steel 8.8 + Wax
- Stem: 2Cr13, Optional SS316 or SS316L
- Stem Nut: Brass
- Split Collar: Iron+Electroplate Gasket: Naylon
- Gland: Brass
- “0” Ring: NBR
- Bonnet Gasket: NBR
- Inner and outer surface of the valve is powder epoxy coated (250-350 Microns) for all sizes.
- Ready For Electric Actuator
- With Electric Actuator -With Handwheel
- With Telescopic or Rigid Extension Spindle 2Cr13 as Standard
- With Limit Switches or Position Indicator.
- With Operation Cap or T-Key
