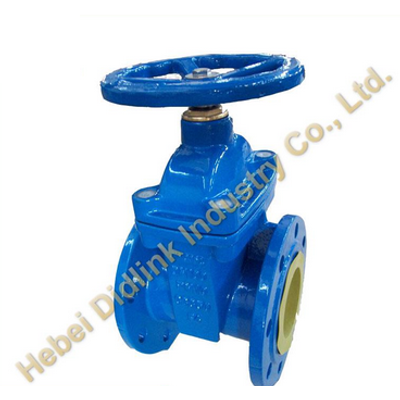

DID Link - Model DIN 3352 F4 -Resilient Seated Gate Valve

SHARE

Name: DIN 3352 F4 Resilient Seated Gate Valve. Design confirms: DIN3352. Flanges drilled confirms: DIN2501/EN1092-2 PN10/16/25. Tightness check: API 598/ISO 5208/EN12226-1. Face-to-face conform: DIN3352/DIN3202 F4(IS05752 Series14)/EN558-1 Series14. Normal pressure: 1.6MPa.

Most popular related searches
resilient seated gate valve
gate valve
cast iron gate valve
resilient seated valve
water neutralization
pressure seal
gate valve flange
  • Shell test pressure: 2.4Mpa
  • Seal test prressure: 176Mpa
  • Suitable medium: water and neutral liquid
  • Working temperature: -20 to 120 centigrade. (EPDM: -20 to 120, NBR: -10 to 80)
  • Body/Bonnet/Olsc: Cast iron/ductile iron/CI/DI/GG25/GGG40/GGG50/HT200/QT450
  • Seat: EPDM/NBR
  • Stem: Stainless steel, brass, bronze, steel with zinc
  • Gland follower: Brass/ductile iron
