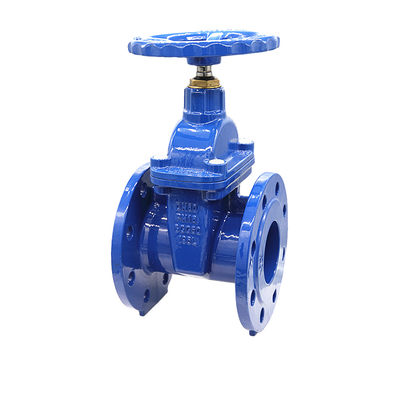

Hiwa - Model DIN NRS-CZ0001 -Resilient Seated Gate Valve
The product has an inverted sealing design, which allows for the replacement of sealing rings under pressure. The product is EN1074-1/2 certified, WRAS certified, and meets the requirements for drinking water applications. The product has a well-designed appearance and low torque. Multiple operators can be chosen, such as handwheel, keycap, extension stem, gearbox, and optional position indicator etc. Lighter weight to incease the installation efficiency.
Most popular related searches
gate valve
resilient seated gate valve
position indicator
drinking water
resilient seated valve
drinking water production
WRAS
- Size Range: DN40-DN300
- Pressure: PN10, PN16
- Temperature Range: -10? to 120?
- Face to Face: DIN 3202 F4, EN558-1 14
- Flange Standard: EN1092-2 PN10/PN16, IS07005-2
- Main Parts:
- Body/Bonnet/Disc: Ductile iron
- Stem Nut: Brass
- Stem: Stainless steel
- Sealing: Rubber
- Fasteners: Galvanized carbon steel, stainless steel
