CTV-Armaturen - Model Type 01-F4 -Resilient Seated Wedge Gate Valves

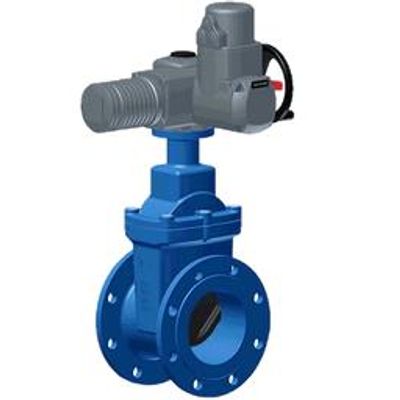

Type 01: Gate Valve (F4) acc. to DIN EN 1074 with ISO top flange acc. EN-ISO-5210. DN50 - DN800 PN10, PN16. DN50 - DN300 PN25. Range of application: Drinking Water. All parts in contact with medium according to UBA-KTW and DVGW W270 (optional NBR for sewage water).
Most popular related searches
resilient seated gate valve
gate valve
resilient seated valve
bonnet gasket
epoxy coating
sewage water
drinking water
spindle
gaskets
sewage
Standards:
- Designed according to EN 1074 part 1 & 2, Designed according to EN 1171.
- Face-to-face length according to EN 558 Table 1 Series 14 - F4.
- Standard flange according to EN 1092 (ISO 7005-2), PN 10, 16, 25.
- Tightness according to DIN EN12266-1, leakage rate A.
Product properties:
- Plastic guide(shoe) in the wedge for reducing torque.
- Large conical spindle opening in the wedge prevents stagnant water.
- Stainless steel spindle with wedge stops and rolled thread for high strength.
- Full circumferential comb ring gives extra grip to stem and provides low torque.
- Triple protection stem seal with an EPDM wiper, a nylon66 bearing with four EPDM O-rings, and an EPDM lip seal.
- Round, recessed bonnet gasket made of EPDM rubber.
- Recessed and sealed stainless steel body screws enclosed by the hood seal.
- Full opening without constriction.
- Low torque.
- Epoxy coating according to DIN 30677-2.
Accessoires:
- Gearbox
- Actuator
- Coupling
- Spindle extension
