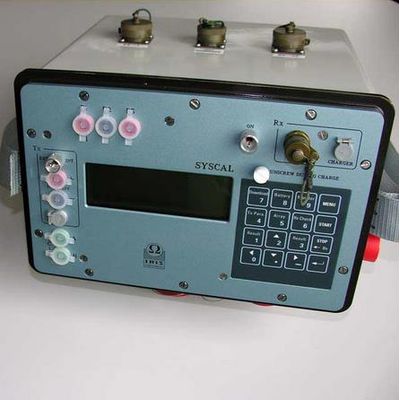

IRIS - Model Syscal Junior -Resistivity Meter

The output current is automatically adjusted (automatic ranging) to optimize the input voltage values and ensure the best measurement quality. The system is designed to automatically perform pre-defined sets of resistivity measurements with roll-along capability.

Compact, easy-to-use and field proof, the Syscal Jr Switch measures both resistivity and chargeability (IP). With a maximum power output of 100W at 800Vpp, the Syscal Junior is suitable for most near surface geophysical prospection applications, such as pollution monitoring, salinity control, depth-to-rock determination, weathered bedrock imaging and shallow groundwater exploration (depth and thickness of aquifers). In high resistance environment, it may be necessary to use the Syscal R1 plus.

Transmitter

• Voltage: 0 - 800 Vpp
• Current: 0 - 1250 mA
• Power: Auto controled Internal 100W DC/DC converter
• Battery:internal battery or external 12V

Receiver

• Pulse duration: 250ms, 500ms, 1s, 2s, 4s, or 8s
• Channels: 2 channels
• Input Impedance: 100 MOhms
• Input Voltage: 15V, automatic gain, input protection 1000V
• Resolution / Accuracy: 1 µV / 0.2%
• Readings: Resistivity, Self potentiel, Induced polarisation ( Up to 20 windows), Quality control, and optional full waveform
• Noise Rejection: power line rejection, SP linear drift correction.
• Storage: 44800 readings, stored on solid state memory

Dimensions

• (L x W x H): 31x23x31cm Fiber glass casing, weather proof,
• weight:9.8Kg with internal RX, TX batteries
• Operating Temp.: -20 to +70°C
