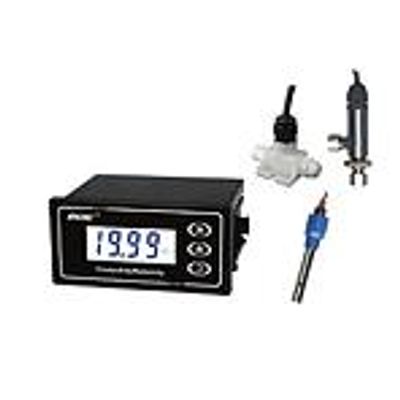

CJK - Model RCT-3200 -Resistivity Meter

FromCJK Alliance Co., Ltd.

SHARE

Main Function: Specific Resistance, Conductivity, Measure of Temperature.

Most popular related searches

resistivity meter

conductivity monitoring

temperature monitoring

conductivity resistivity

resistivity instrument

Measure Range Specific Resistance: 0~18.25MΩ.?
Conductivity: 0.05~1.5?/?
Tolerance 2.0%(F.S)
Working Pressure 0~0.5MPa
Temperature /Humidity 0~50? / ≤85%RH
DISPLAY LCD digital display (2 1/2 bits or 3 1/2 bits optional selection)
POWER AC220(110)V±10%
OUTPUT Non-isolated 4~20mA, Max. loop resistivity > 300Ω
RELAY Output ON/OFF double contact, AC230V/5A Max
Size of Cutting 44 x 92mm(H x W)
Appearance Dimensions 48 x 96 x 80mm (H x W x D)
