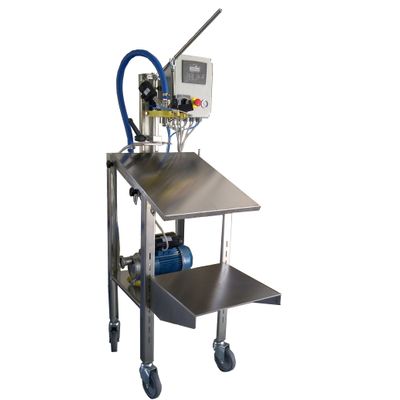

Revello - Automatic Liquid Filling Machine for Bag-in-Box Packaging

Semi-automatic filter for Bag-in-Box with capacities from 2 litres to 20 litres, for the filling of liquid and semi-dense products including foodstuff and other liquids (e.g. oil and wine a maximum viscosity of 300 cps). It is possible to perform hot filling at a temperature up to 50°C with a pump with delivery of 50 l/min. The dosing is made with with electronic liter-counter. It is possible to use any type of standard tap: Vtop, Press-Top and Flex-Top. Control of defective bag my means of a vacuum meter. The bag is positioned inthe fork; maneuvering the lever the stopper is removed and the filling tap is inserted in the bag. By pressing start you make the vacuum in the bag, later on the filling is made with tha addition of nitrogen. Maneuvering the lever again the stopper is inserted in the bag in box and the bag is extracted manually to make it slide in the box.
