Vibsens - Model VC200RD - Reverse ...

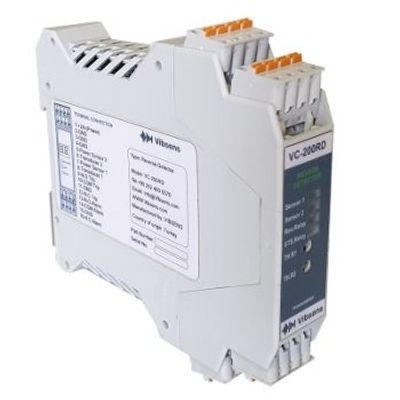

Vibsens - Model VC200RD -Reverse Detection Module

SHARE

The VC200RD-Reverse Rotation Monitor provides an early indication of a reverse rotation event. It is particularly useful on machines such as pumps, hydraulic turbines, and compressors that can rotate in the wrong direction during process upset conditions and thereby damage the machine. This signal conditioner is a zero speed/standstill monitor that accepts input frequency pulses and triggers an output when the frequency drops below a selected value. Two startup override values are available. This unit can also be used to determine rotation direction. The available diagnostic LEDs show rotation detection, limit trip indicator, power on and hardware error indication.

Most popular related searches

eddy current magnet

signal conditioner

vibration monitoring

Two speed inputs
Eddy current /magnetic/photo electric proximity transducer (TTL pulse)
Configurable trigger edge
Two output relays
Rotational direction indicator
Stand still detector
DIN Rail Mounting
Push-in type connectors
Energize and De-energize relay selection
Four LED indicators
2 KHz frequency response

Input : Analog/digital output speed transducer (Eddy current/ magnetic/photoelectric)

Frequency Range : 0.1 Hz to 2 kHz

Operating Mode : Reverse rotation & stand still protection

Stand still : Adjustable (0.1, 0.5, 2, 10 Hz)

Reverse detection : Minimum overlapping ~ 125µs

Trigger edge : Adjustable pulse level

Minimum : > 200µs for standstiil

Pulse duration : > 250µs for rotation direction

Power Input : +24 V DC (50 mA)

Relay 1 : Stand still

Relay 2 : Reverse rotation detection

Output Relays : 2 SPDT, 1A Form C 24Vdc

Status LEDs : 4 (Input 1/ Input 2 Stand still/ reverse rotation)

Case Material : Plastic

Mounting : DIN Rail TS35 (Top Hat)

Dimensions : 134 x 99 x 22.5 mm (H x D x W) including BNC

Connections : Push in Clamp

Conductor Size : 0.5 to 4.0 mm

Weight : 110 g (nom)

Power : 1.5 W
