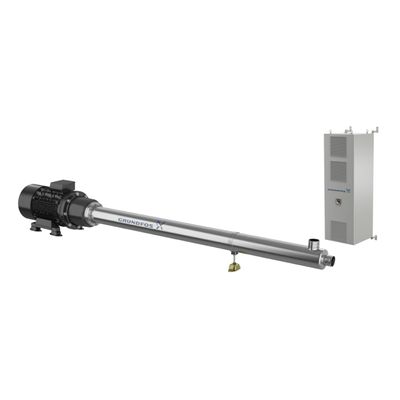

Grundfos - Model BMS -Reverse Osmosis And Filtration Booster Modules

The BMS range comes in 3 different combinations:

• BMS hs: High pressure booster system
• BMST: High pressure booster system with energy recovery via turbine
• BMSX: High pressure booster system with energy recovery via pressure exchanger

• All critical components are super duplex stainless steel suitable for use in seawater and brackish water applications
• The shaft seal is made from carbon/silicon carbide, especially designed for high pressure
• The thrust bearing material is ceramic and carbon
• Pump bearings and seal rings are made of NBR rubber
• Built-in thrust bearing absorbing the axial thrust from the pump

• Reverse Osmosis systems
• Ultra filtration system
• Filtration systems
• Pressure boosting systems and water supply

• Energy savings due to high efficiency
• Easy maintenance and alignment due to improved design
• Easy integration in any water treatment system
• Extreme durability and reliability
• Very small footprint
• Designed for high flows and pressure
• All critical components in contact with water are made of super duplex stainless steel
• Speed ramp up and down are included
• VFD pre-set at duty point.
