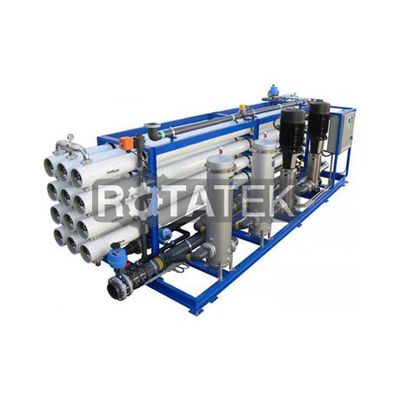

Rotatek - Model Rotapur 800 -Reverse Osmosis Systems
AISI 304 Stainless steel chassis. Stainless steel membrane vessels. AISI 304/316 stainless steel high pressure. Permeate flush system. Automatic flush and CIP unit. Touch screen panel. Feed inlet conductivity analyser. Raw water blending system. Containerized RO system. Complete plant with chassis (with pretreatment units).
-
Epoxy coated carbon steel chassis
-
8” spiral wounded membranes
-
5 µ sediment filter
-
Centrifugal type Dikey high pressure pump
-
380 V/3 faz/50 Hz power requirement
-
FRP membrane vessels
-
Conductivity analyser
-
Low pressure piping U-PVC Zonder / PP
-
High pressure piping AISI 304 stainless steel
-
Low pressure switch
-
High pressure switch
-
Membrane inlet pressure regulator valve
-
Concentrate wastewater flow regulation valve
-
Permeate and concentrate flowmeters
-
Electric actuated inlet valve
-
Automatic flush system
-
PLC based control panel
