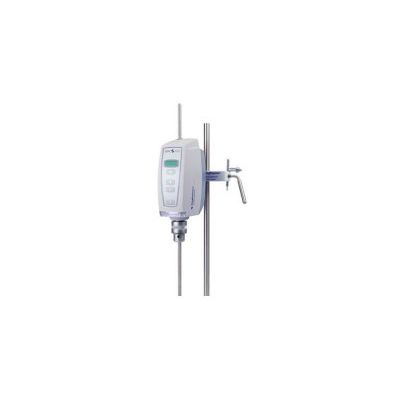

Caframo - Model BDC2010 -Reversing Digital Laboratory Stirrers
Caframo has a history of great innovation in overhead stirrers. The BDC2010 stirrer is no exception and delivers 25% more power than the BDC2002 while keeping the same compact footprint, Stirlight™ and through shaft. The BDC2010 works smarter and allows the user complete mixing control. The stirring direction can be changed with the touch of the reversing button. The countdown timer times a stirring activity and beeps when completed. Engage the Auto Start feature to start or resume stirring automatically when power is supplied by control equipment or after a power outage. In xRx mode the stirrer is set up to continuously reverse from one direction to the other for a set length of time. (Picture the agitation mode of a top loading washing machine!)
- Speed: 40-2010 rpm (clockwise and/or counterclockwise)
- Volume Maximum: 25 L (6.5 US Gallons)
- Viscosity Maximum: 20 000 mPa·s (20 000 cP)
- Torque Maximum: 100 N·cm (9 in-lbs = 142 in-oz)
- Output Power: 70 Watts (1/10 hp)
- Speed Display: Yes
- Speed Accuracy: +/- 1 rpm
- Torque Display: No
- Zero Torque: No
- Timer: Countdown 1-2000 minutes (33.3 hours)
- Through Shaft: Yes
- Chuck Maximum Shaft Diameter: 9.5 mm (3/8”)
- Chuck Guard: Yes
- Housing: Epoxy-coated zinc
- Weight: Power Supply: 0.6 kg (1.2 lb), Stirrer: 3.0 kg (7 lb)
- IP Rating: IP 42
- Voltage: 120 V/230 V
- Frequency: 50/60 Hz
- Ambient Temperature Operation: 5-40°C (41-104°F)
- Relative Humidity Operation: 80%
- xRx Mode: 1-2000 minutes (33.3 hours)
- Warranty: 3 years
- Clockwise and counterclockwise stirring
- Timer
- Stirlight™
- Sealed housing
- Brushless DC motor
- Digital display
- Through shaft
- Electronic digital contro
- Stirring versatility
- Repeatability to process
- Allows monitoring of mixing properties of batches
- Keeps liquids and moisture out in aggressive environments
- High efficiency (less heat)
- Precise speed adjustment
- Easy impeller adjustment saves time
- Set speed is maintained as viscosity changes
- Automatic overload protection
