Triple R - Revolutionary Element

A revolutionary element design allows to guarantee absolute filtration effectiveness.

The filter design forces the oil to flow through 114mm of engineered filter media and creates 3 distinct stages of filtration.  The lower part is compressed by a carton box, creating an even finer filter medium.

1. Big particles stay on top of the element.
2. Smaller particles are captured in the upper non-compressed part.
3. The smallest particles are captured in the lower compressed part

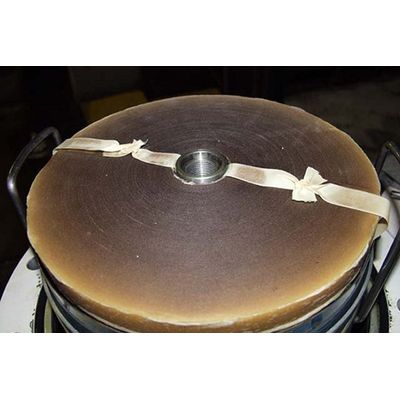

As big particles are retained on top, the filter becomes an excellent diagnostic tool.

The cellulose filter media absorbs water drops and consequently dries the oil to less than 100 ppm.

The industry thickest filter, 114mm to flow trough, combined with Triple R`s filter media, results in the unique ability for absorbing and removing oil oxidation residues, well known as sludge, or varnish deposits.

A unique range of filter elements engineered to fit every application.

All Triple R filter elements are Multipass-tested and guarantee consistent and reproducible micron ratings and filtration efficiency. The filter element range comes in 4 sizes (30, 50, 100 and 300 size), in various filter materials from cellulose to polyester to PP, and in 2 different setups (standard setup or ‘double stage’ D-series setup).
