MJK - Revolutionary pH Meter

THIS UNIQUE DESIGN ELIMINATES ANY KNOWN PROBLEMS WITH HIGH IMPEDANCE ELECTRODES AND, FURTHERMORE, NO SPECIAL TOOLS ARE REQUIRED FOR INSTALLATION. ALSO, DUE TO THEIR LARGE REFERENCE JUNCTION, PHIX ELECTRODES ARE LESS SENSITIVE TO POLLUTING ELEMENTS.

MJK analysis instruments provide knowledge of oxygen content, dry matter, turbidity, pH and redox for water supplies, treatment plants, aquaculture - and increasingly through environmental monitoring. Many processes rely on pH and redox measurements, including - in particular - treatment of wastewater, in industrial processes and in aquaculture. pH measurement is used, among other things, to control neutralization, precipitation and other chemical processes.

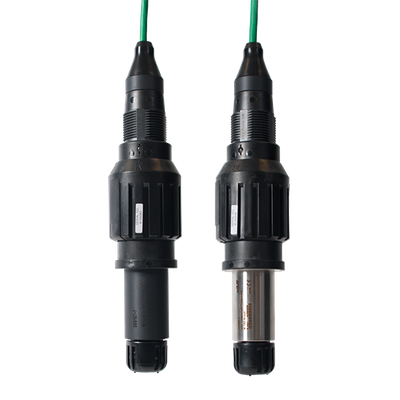

MJK pHix Compact is an innovative pH meter and redox transmitter that can be immersed in liquids in channels and tanks for accurate measurements. When measuring in pipes, it is possible to mount the pHix Compact in a 2”pipe socket. pHix Compact is IP68 secured and can therefore withstand up to 1 bar/10 mWG pressure and full immersion.

Our product range within analysis measurements is modern and competitive. Thus, it can be used individually or connected to other meters and controls within MJK`s network solution.

• Compact Design

  pHix Compact efficiently combines electrode, fitting and amplifier in one unit, eliminating the need for sensitive cable connections.

• OUTPUT SIGNAL

  pHix Compact delivers a 4-20mA output signal.

• EASY MAINTENANCE

  Calibration of electrodes takes place via a guide sequence, which is started using the switch. The switch is built into the handle or a “tilt switch”.

• Integration

  Power is supplied directly from PLC (active input 12-30VDC)

• WIDE RANGE OF ACCESSORIES

  To make your everyday life a little easier, we have designed a wide range of accessories for pHix Compact.

• PLUG’N’PLAY

  Easy installation, assembly and setup.
