If required, the suno system can control pumps, valves and other actuators across stations in battery or solar mode. That is unique!
Even without a mains supply, the suno has the capacity to process complex internal logic. This enables measurement data to be processed on site.
Data communication via several cellular networks without additional SIM cards. Maximum user-friendly metering point operation via our managed.service.
The modular system allows power to be supplied via battery, a solar system or the power grid. For remote locations, station lighting is also possible with the solar version.
The suno ensures the connection of sensors with complex signals under difficult energy conditions. This enables the energy self-sufficient measurement of turbidity, redox, pH value, chloride, oxygen content and much more.

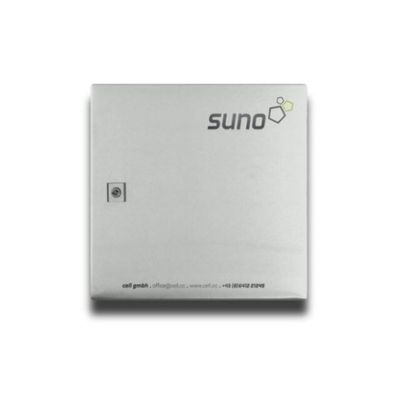

The suno is a modular system, which is why it is modular and easy to expand. It is available in a compact control cabinet, for conversions and retrofits on mounting plates or as individual components.
Interfaces :
4x universal inputs (0/4..20mA, 0..2/10V, digital, frequency, PWM, counter)
1x temperature input PT100/1000
1x RS485 interface with Modbus RTU/ASCII
1x RS232 interface
1x potential-free switching contact
Energy supply :
Solar
Sensor power supply :
2x switchable 3.3 VDC supply with max. 180 mA
1x switchable and adjustable sensor supply (5..24 VDC)
Control capability :
Cross-station control, Local control, No control
Übertragungsmodus :
interval, interval + wakeup, live, online
Casing :
Steel electrical enclosure, powder-coated or stainless steel 380 x 380 x 210 mm, protection class IP66
Operational conditions :
-20..+60 °C, 15..90 %rH, non-condensing
Measurement data storage :
3 Mb internal storage
Operation :
LED status light, reed contact
Solution :
Pressure Increase
