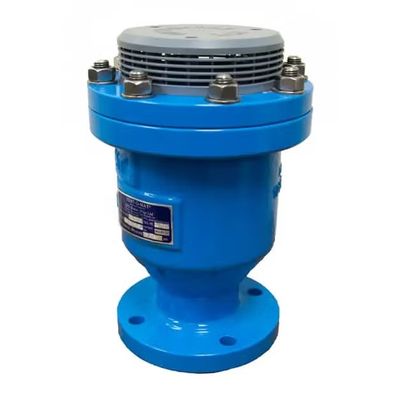

RF-Valves Vent-O-Mat - Model RBX C Series -Air Release Valves
FromRF Valves, Inc
The original “Anti-Shock” & “Anti-Surge” air release and vacuum break valves for water, sewage, and effluent pipelines in FUSION BONDED EPOXY POWDER COATED ductile iron.
Most popular related searches
air release valve
air valve
fusion bonded epoxy coating
water pipeline
air intake
water valve
epoxy coating
drain water
sewage effluent
sewage
- High capacity air discharge during pipeline filling
- High volume air intake for vacuum break purposes, both during draining of water pipelines and/or column separations
- Independent third-party tested
- Controlled pressurized air discharge releases air when pipelines are fully-charged
- Surge relief prevents pipeline bursts during pump trip & rapid pipeline filling
- NSF61 approved
- Standard – 4 functions
- Biased
- Flanged/Threaded Outlet
- Size Range: 1" (25mm) to 12" (300mm)
- Temperature: -40degF to 176degF
- Max. Operating Pressure: Up to 1450psi (100bar) depending on size
- Min. Operating Pressure: 7.25psi
- Flange Connection: ASME B-16.5
- Flange Drilling: ANSI 150#, ANSI 300#, ANSI 600#, ANSI 900#
- Body Material: Fusion Bonded Epoxy Powdercoated Ductile Iron
- Flange Material: Fusion Bonded Epoxy Powdercoated Ductile Iron
- Top Cover: Fusion Bonded Epoxy Powdercoated Mild Steel
- Float Material: High Density Polyethylene (solid)
- Bleed Port: Yes
- O-Rings & Nozzle Seat: EPDM
