Baoji-Lixin - Model MMO -Ribbon Anode

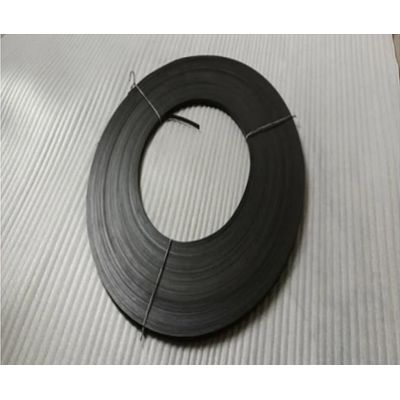

• The mmo ribbon anodes are composed of titanium ribbon substrate coated with a mixed metal oxide catalyst.
• The anodes can achieve 50 years operating lifespan in a current density of 17mA/m.
• The mixed metal oxide anodes are designed for protecting the bottoms of many large-scale storage tanks.
• They can be used in sands with various levels of moisture and salt contents without any carbon filling materials.
• MMO meshes or ribbons were welded together by metal titanium current distribution member as impressed-current anodes in storage tanks bottoms for cathodic protection system.

Lightweight-100 feet of the 1/4" (6.35mm) ribbon weighs slightly more than lib;

• Ductile- composite materials eliminate problems with breakage of brittle materials such as
• graphite and silicon iron;
• Dimensional stability eliminates issues associated with connection seals;
• Compatible with a wide range of cathodic protection media (water, coke, seawater. brackishwater);
• Superior corrosion resistance compared to graphite, silicon iron, and other altemativematerials;
• Conveniently cut and welded in the field to suit various geometries;
• Durable;
• Even current distribution;
• Chemical corrosion resistance;
• Low system electrical resistance.
