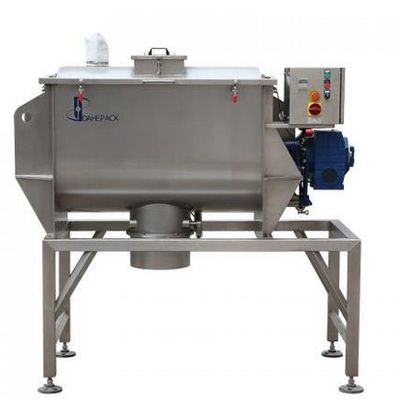

Dahe Pack - Model DH-JD -Ribbon Mixer Powder Blender
The ribbon blender mixes free-flowing raw materials within a U-shaped trough. A horizontal agitator consisting of precisely pitched inner and outer helical ribbons moves materials in a well-balanced axial and radial flow pattern. High-quality ribbon blenders feature tightly controlled clearances between the through surfaces and agitator tips. Good design and expert fabrication ensure fast repeatable mixing, easy clean-up, low maintenance, and long service life.
- Ribbon Blenders consist of U shape horizontal trough and specially fabricated ribbon agitator.
- Effective mixing load(40%-80%)
- High mixing speed and short uniform time. Mixing speed is around 5-15min
- All stainless steel 304 material
- Full Mirror polished mixing tank inside, as well as ribbon and shaft
- Safety switch, safety grid
- Discharge gate can be manual or pneumatically operated for direct filling in bags or dumping into storage bin.
How the ribbon blender works
Ribbon Blenders consist of a U-shaped horizontal trough and a specially fabricated ribbon agitator. A ribbon agitator consists of a set of inner and outer helical agitators. The outer ribbon moves materials in one direction and the inner ribbon moves the materials in the opposite direction. The machine turning speed is 46rpm, the ribbon blender moves materials both radially and laterally to insure thorough blends in short cycle times. Ribbon agitators are used for blends that will be between 40 and 80% of the rated capacity of the blender
