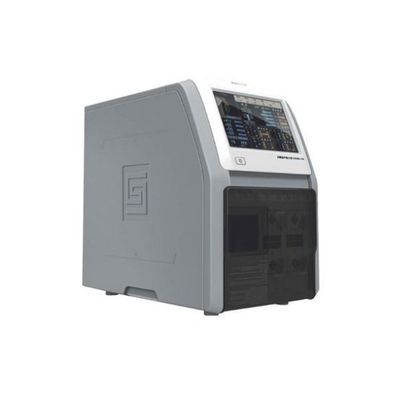

Richen - Model 500 Series -Infrared Spectrometer

The principle functionality of IR Force 500 is based on the specific absorption of infrared light corresponding to the centre of the infrared spectrum, between 2 and 8 micrometres in wavelength (NDIR = Non Dispersive Infrared Spectroscopy).

The high selectivity of the infrated sensors is obtained through the saturation of the components 13CO2 and 12C02. The sensibility between 13C and the other concentration of 12C is reached thanks to a gas filter for the 12C02 in the channel of the 13C02 and a mathematical algorithm. In order to reach a high level of  accuracy, the temperature is stablished by a thermostat in such a way as to render the system thermally isolated.

The unit is made up of a comprehensive control panel, optical route and air channel, with an integrated LCD touch screen monitor, PC and micro-printer (with the possibility of connection with an external printer).

The four entry points for the bags of gas samples are connected directly to the apparatus by means of inlets situated on the mini front panel.

• 4-channel compact system (2 patients)
• Management system with integrated touch screen monitor
• Integrated motherboard
• 64 Gb ssd memory
• USB, Ethernet, VGA, AUX output
• Possibility of connection to host
• Wi-Fi / Ethernet connection
• Wi-Fi keyboard and mouse connection
• Built-in micro-printer
• Simple and intuitive internal software
• Management of the instrument even remotely via tablet (optional)
• Temperature-controlled reading
• Compensation of the internal temperature with ambient temperature
• Reading phases visible through a dedicated screen
• 10-inch display
• Possible extension in parallel to a second instrument
• Icons of the main functions visible on the tablet and of immediate intuition
• Windows software platform 10.1
• Possibility of Editable Report in Word
• Word Report Automatically exported With the patient`s name and surname + the date the test was performed
• Possibility to read patient info from BarCode
• Possibility of translation in the preferred language
• Ability to load and display on the display in which position you are about to perform the test
• Archive of all the tests carried out that can be consulted via the appropriate button in the software
• Remote connection via Team Viewer
• Self check visible in the three phases: temperature, voltage, air circuit
• Test grid executed with time 0, time 30, DOB, positive / negative values
• No extraordinary maintenance
• Auto check for voltage evaluation on 12c / 13c
• Automatic calibration and without additional costs through exhalation with CO2 at 5% of the operator
• Response in 191 seconds
• 12 / 13c reading curves visible to the operator during the reading phase
• Report with DOB + outcome (positive / negative)
• Report in A4 format
• Ability to translate software into the required language
• Does not require dedicated personnel
• No limit of daily test execution
• Automatic air circuit cleaning with each test
• Reading through aluminum bags with flexible cannula + cap (no latex)
• Latest generation infrared reading system (NDIR)
• Back filter for CO2 and condensate cleaning and dust filter
• Fault signal in the absence of CO2 sufficient to carry out the test
• Export of data in Excel format
• Preloaded Windows office
• Visible reading curve in real time
• Storage of calibration curves
• Printing of the curves in A4 format with graph and relative dilutions
• Calibration dilution up to 13 points
• Insertion of patient data before or after the test
• Search for patient data
• Statistics by gender / date
• Statistics by gender / date
• Operator`s manual integrated into the software
• Validation or cancellation of executed tests
• External b / w laser printer

• Environment : Room temperature: from 5 °C to 4 0 °C
• Altitude: < 2000 meters above sea
• Relative humidity (RH): < 80%
• Dimension, weight and electric characteristics
• Height mm : 400±20
• Width mm : 500±20
• Depth mm : 270±20
• Weight kg : 15
• Feed : l00V. – 240V.AC – 50Hz
• Absorbition : 0,5 A
• Gas : All gasses are transported in the analyser by means of an integrated pump. An anti-dust filter and a C02 filter impede any type of contamination of the analyser from any type of air from the instrument.
