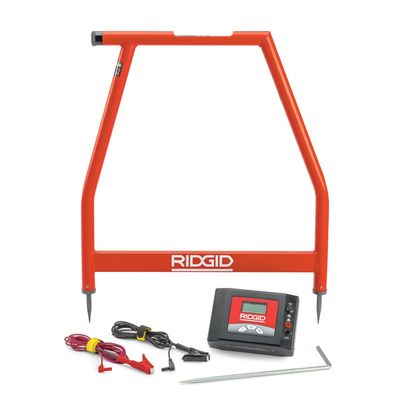

Ridge Tools - Model 56613 -A-Frame Fault Locator System

The RIDGID A-Frame Fault Locator is a purpose built system to simplify the location of ground faults in direct buried insulated wire.

• Purpose-built directional fault finder
• Locates insulation faults up to 2 megohms
• Reference readout to determine fault location
• Durable, lightweight powder-coated aluminum frame
• Weather proof membrane buttons
• Made in the U.S.A.

FT-103 Transmitter:

• Operating Frequencies:
• Direct Fault Finding: 797 Hz - “dFF” displayed
• Path locating: 128 Hz, 1 kHz, 8 kHz, 33kHz, 93 kHz
• Direct Connect: 128 Hz, 1 kHz, 8 kHz, 33kHz, 93 kHz
• Inductive Clamp: 8 kHz, 33 kHz, 93 kHz
• Broadcast Inductive: 33 kHz, 93 kHz
• Load Range: 5 Ω to 2M Ω
• Output Power: Up to 3 Watts (Low,medium and high settings)
• Output Voltage: 5 Volts - 600 Volts
• Power Supply: 8 × C-Cell Batteries (Included)
• Dimensions (LxWxH): 8.5" x 5.8" x 2.5"

FR-30 A-Frame Receiver:

• Fault Finding Depth: Up to 20` (depending on conditions)
• Fault Finding Length: Up to 3 miles (depending on conditions)
• Display: Black and White LCD
• Power Supply: 6 × AA Batteries
• Dimensions (LxWxH): 30.3" x 30.4" x 1.5
